Dell PowerConnect 3524P - Page 301

Configuring Switch Information 301
Defining Port Parameters
1 Open the Port Configuration page.
2 Select a port in the Port Field.
3 Define the available fields in the dialog.
4 Click Apply Changes .
The port parameters are saved to the device.
Displaying and Modifying Multiple Port Configurations
1 Open the Port Configuration page.
2 Click Show All .
The
Port Configuration Table opens.

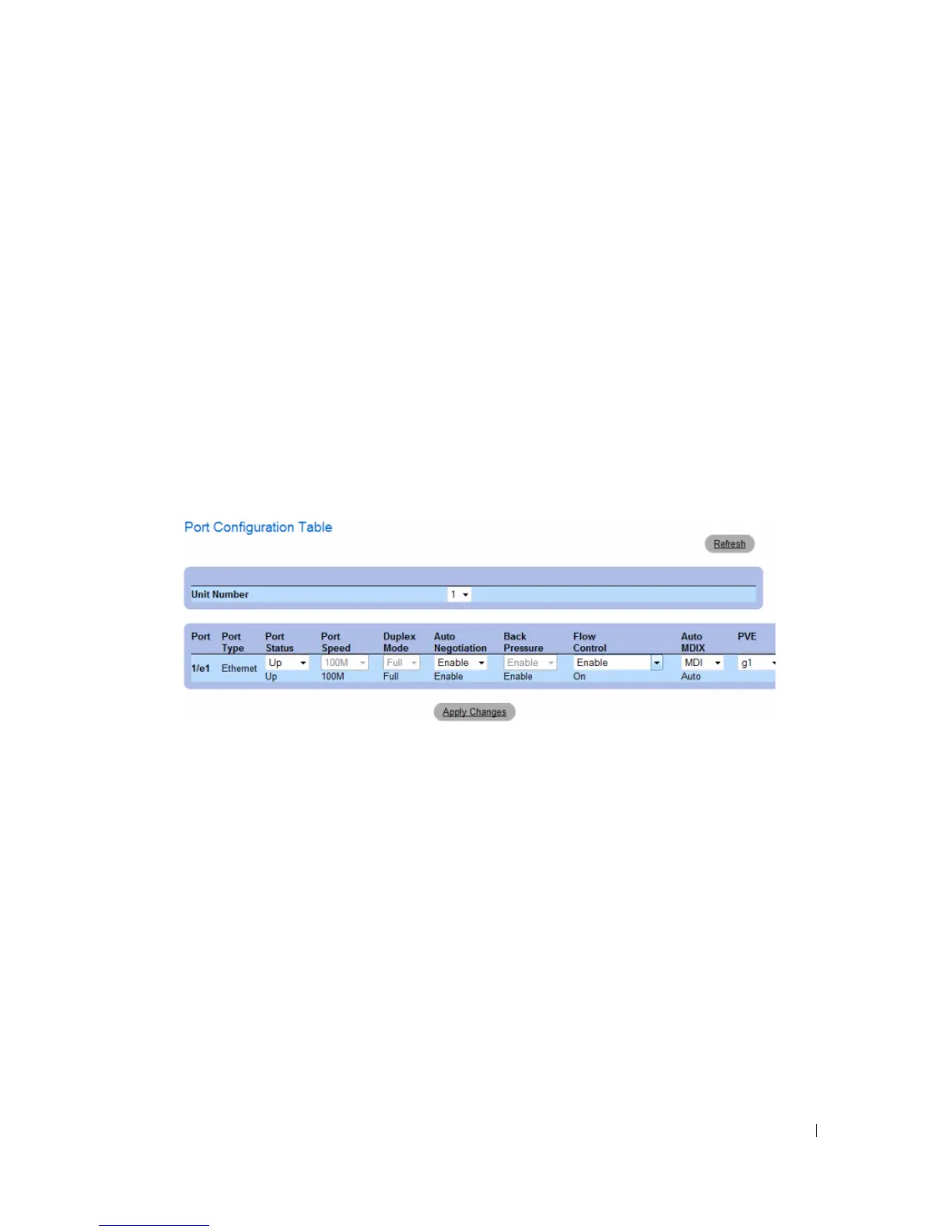

Figure 7-22. Port Configuration Table
3 Define the available fields for the relevant port.
4 Click Apply Changes .
The port parameters are saved to the device.
