316 Configuring Switch Information

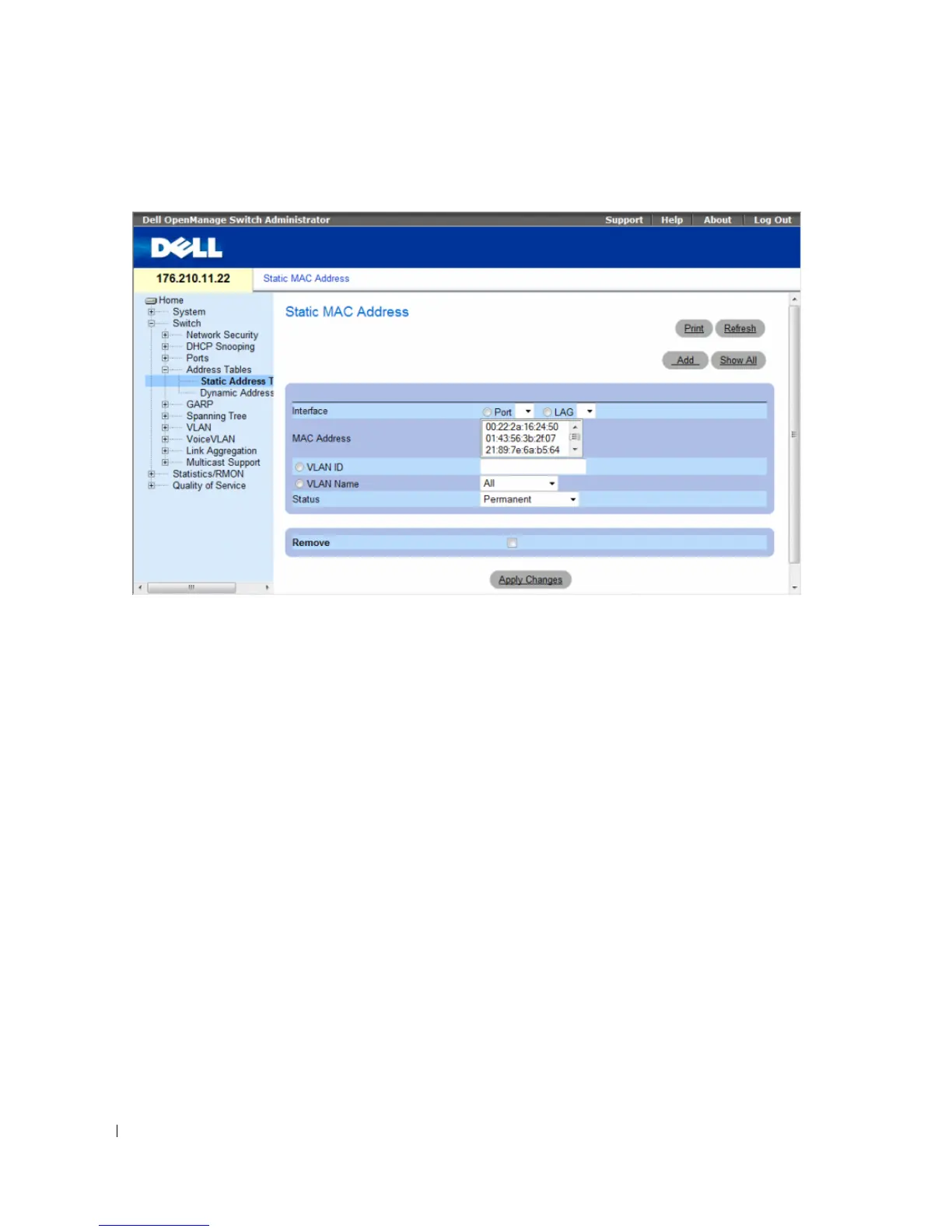

Figure 7-29. Static MAC Address
The Static MAC Address page contains the following fields:
• Interface — The specific port or LAG to which the static MAC address is applied.
•
MAC Address — The MAC addresses listed in the current static addresses list.
•
VLAN ID — The VLAN ID attached to the MAC.
•
VLAN Name — User-defined VLAN name.
•
Status — MAC address status. Possible values are:
–
Secure — Used for defining static MAC Addresses for Locked ports.
–
Permanent — The MAC address is permanent.
–
Delete on Reset — The MAC address is deleted when the device is reset.
–
Delete on Timeout — The MAC address is deleted when a timeout occurs.
To prevent Static MAC addresses from being deleted when the Ethernet device reset, ensure the port
attached to the MAC address is locked.
• Remove — Removes the selected MAC address from the Static MAC Address Table . The possible
field values are:
–
Checked — Removes the selected MAC address.
–
Unchecked — Maintains the selected MAC address.
