338 Configuring Switch Information
• Designated Port ID — The ID of the selected interface.
•
Designated Cost — Cost of the port participating in the STP topology. Ports with a lower cost are less
likely to be blocked if STP detects loops.
•
Forward Transitions — Number of times the LAG State has changed from the Forwarding state to a
Blocking state .
Modifying the LAG STP Parameters
1 Open the Spanning Tree LAG Settings page.
2 Select a LAG from the Select a LAG drop-down menu.
3 Modify the fields as desired.
4 Click Apply Changes .
The STP LAG parameters are modified, and the device is updated.
Displaying the STP LAG Table
1 Open the STP LAG Settings page.
2 Click Show All .
The
STP LAG Table opens.

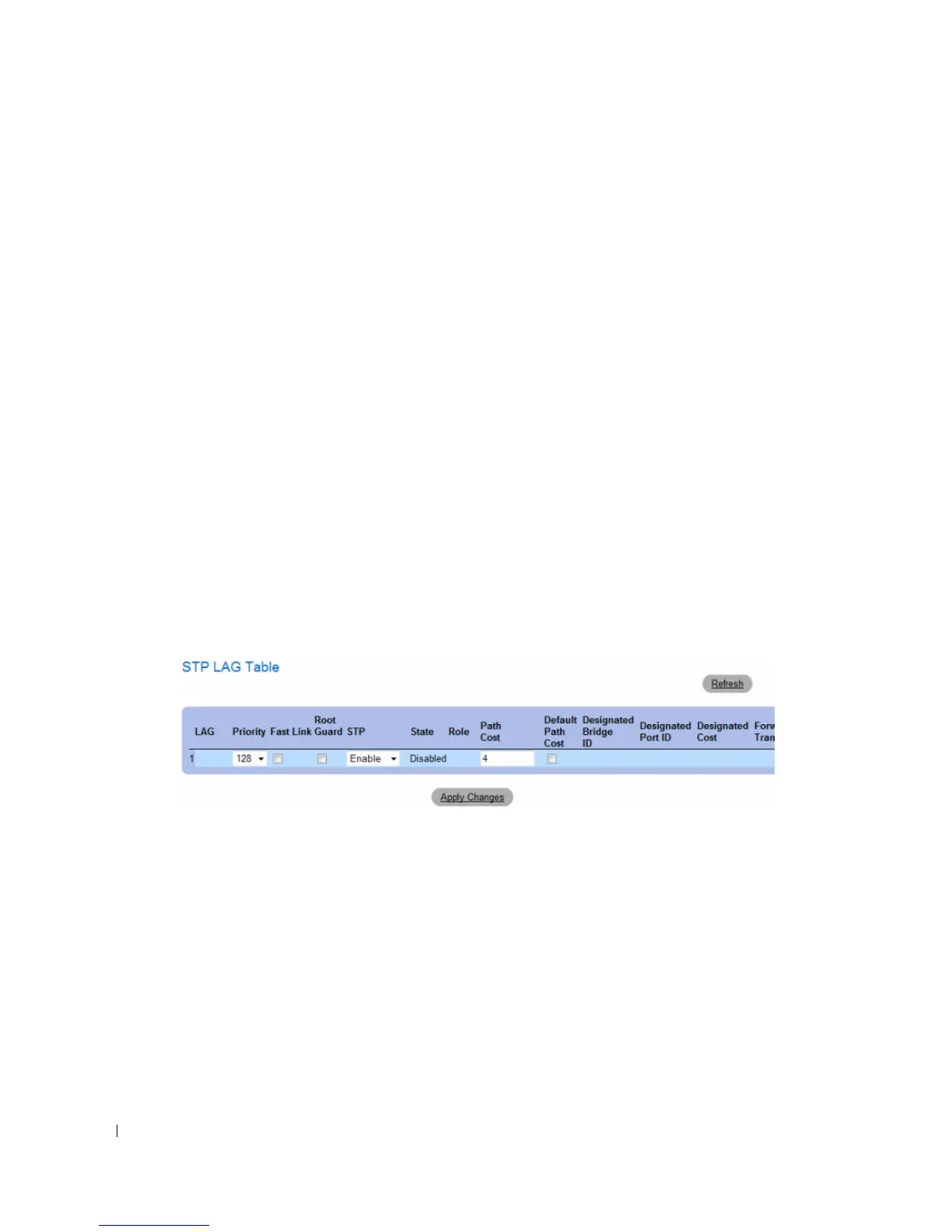

Figure 7-39. STP LAG Table
