406 Viewing Statistics

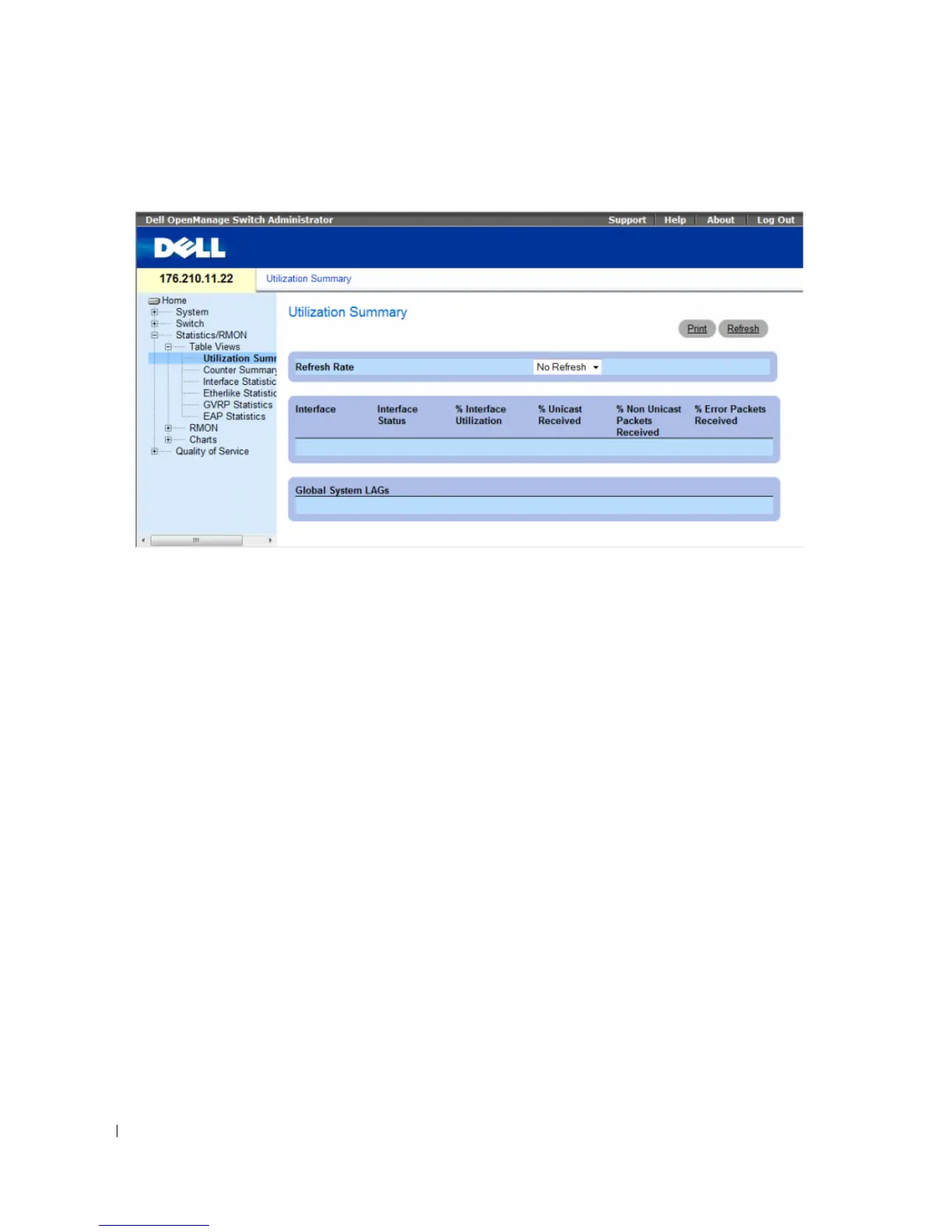

Figure 8-1. Utilization Summary
The Utilization Summary page contains the following fields:
• Refresh Rate —Indicates the amount of time that passes before the interface statistics are refreshed.
The possible field values are:
•
15 Sec — Indicates that the interface statistics are refreshed every 15 seconds.
•
30 Sec — Indicates that the interface statistics are refreshed every 30 seconds.
•
60 Sec — Indicates that the interface statistics are refreshed every 60 seconds.
•
No Refresh — Indicates that the interface statistics are not refreshed automatically.
•
Interface — The interface number.
•
Interface Status — Status of the interface.
•
% Interface Utilization — Network interface utilization percentage based on the duplex mode of the
interface. The range of this reading is from 0 to 200%. The maximum reading of 200% for a full duplex
connection indicates that 100% of bandwidth of incoming and outgoing connections is used by the
traffic travelling through the interface. The maximum reading for a half duplex connection is 100%.
•
% Unicast Received — Percentage of Unicast packets received on the interface.
•
% Non Unicast Packets Received — Percentage of non-Unicast packets received on the interface.
•
% Error Packets Received — Percentage of packets with errors received on the interface.
•
Global System LAGs — Indicates the current global LAG utilization.
