• Interface — Indicates the port or LAG that is being displayed.
•
Egress Shaping Rate on Selected Port — Indicates the Egress traffic limit status for the interface.
–
Checked — The Egress traffic limit is enabled.
–
Not Checked — The Egress traffic limit is disabled.
•
Committed Information Rate (CIR) — Defines the Egress CIR traffic limit for the interface.
•
Ingress Rate Limit Status — Indicates the Ingress traffic limit status for the interface.
–
Checked — The Ingress traffic limit is enabled.
–
Not Checked — The Ingress traffic limit is disabled.
•
Ingress Rate Limit — Defines the Ingress traffic limit for the interface.
Assigning bandwidth settings for an interface:
1 Open the Bandwidth Settings page.
2 Select an interface in the Interface field.
3 Define the fields.
4 Click Apply Changes .
The bandwidth settings are assigned to the interface.
Displaying the Bandwidth Settings Table:
1 Open the Bandwidth Settings page.
2 Click Show All .
The Bandwidth Settings Table opens.

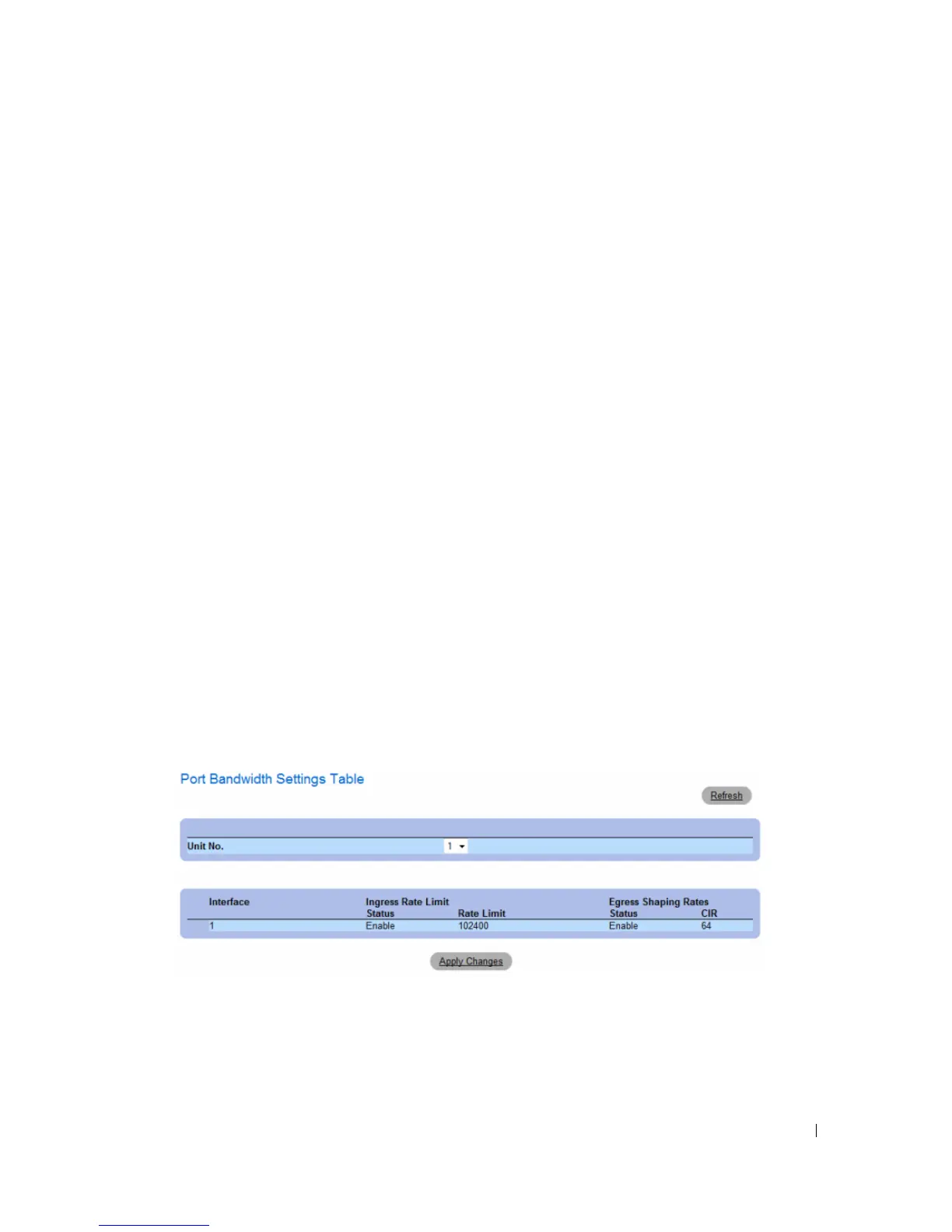

Figure 9-4. Bandwidth Settings Table
