Configuring Device Information 251
Authenticating Users
The Authenticated Users page displays user port access lists. The User Access Lists are defined in the
Add User Name page. To open the Authenticated Users page, click Switch → Network Security →
Authenticated Users.

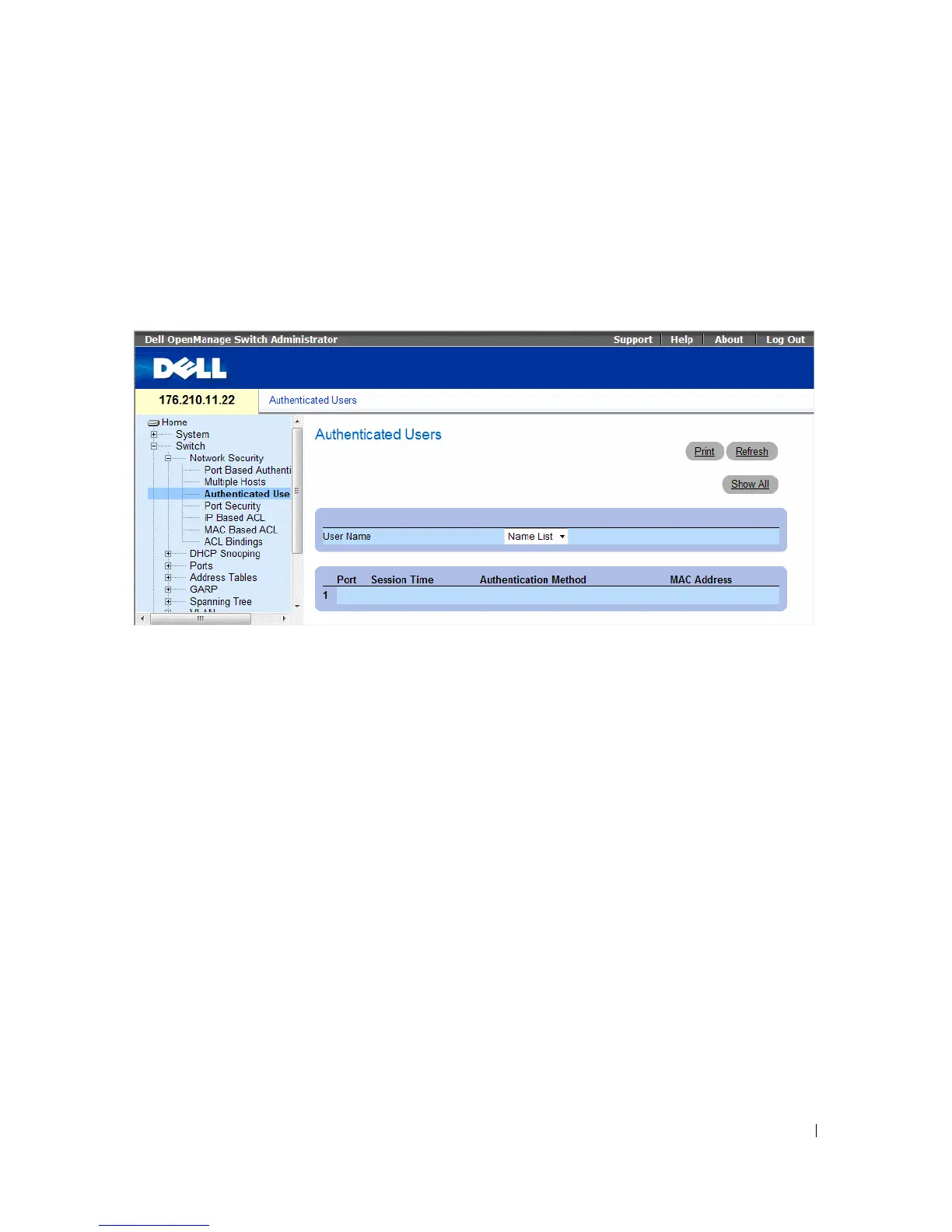

Figure 7-5. Authenticated Users
• User Name — List of users authorized via the RADIUS Server.
•
Port — The port number(s) used for authentication - per user name.
•
Session Time — The amount of time the user was logged on to the device. The field format is
Day:Hour:Minute:Seconds , for example, 3 days: 2 hours: 4 minutes: 39 seconds.
•
Authentication Method — The method by which the last session was authenticated. The possible
field values are:
–
Remote — The user was authenticated from a remote server.
–
None — The user was not authenticated.
•
MAC Address — The client (supplicant) MAC address.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
