Dell PowerConnect 5424 User Manual

Configuring System Information 199
Adding a View
1 Open the SNMPv3 View Settings page.
2 Click Add .
The Add a View page opens:

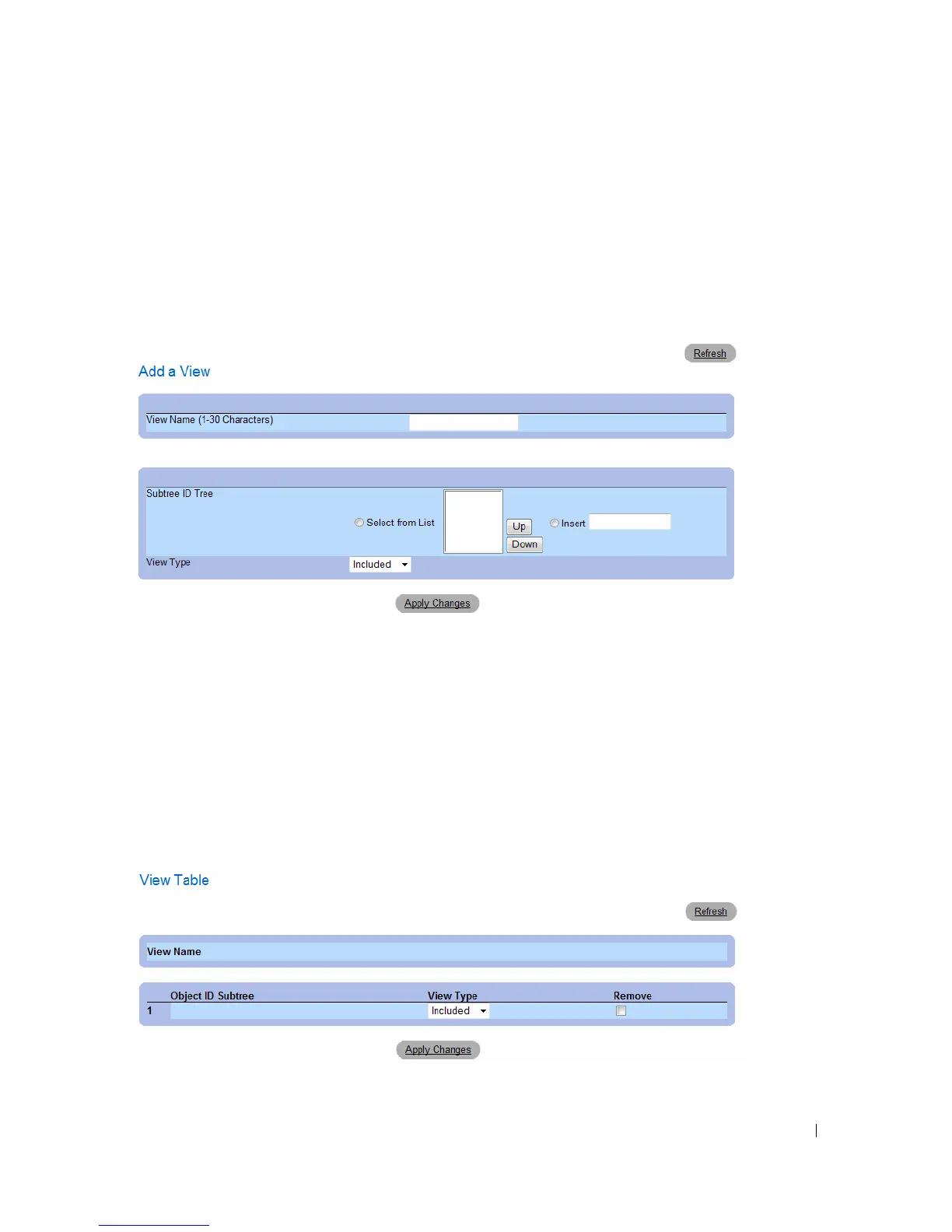

Figure 6-83. Add a View
3 Define the field.
4 Click Apply Changes .
The SNMP View is added, and the device is updated.
Displaying the View Table
1
Open the SNMPv3 View Settings page.
2 Click Show All .
The View Table page opens.
Figure 6-84. View Table

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
