Dell PowerConnect 5424 User Manual

Configuring Device Information 263
Defining MAC Based Access Control Lists
The Network Security - MAC Based ACL page allows a MAC- based ACL to be defined. ACEs can be
added only if the ACL is not bound to an interface.
To define MAC Based ACLs, click Switch → Network Security → MAC Based ACL.

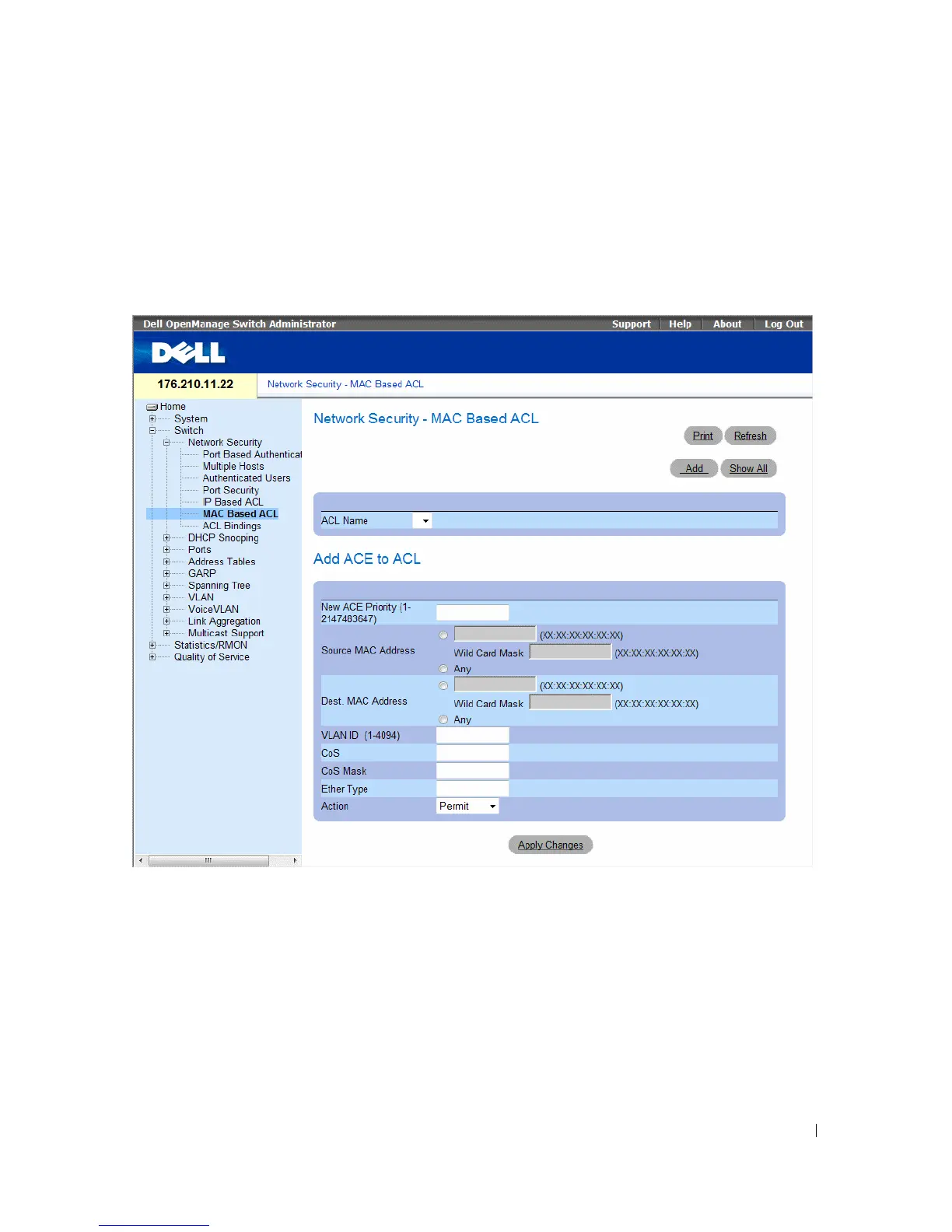

Figure 7-12. Network Security - MAC Based ACL
• ACL Name — Displays the user-defined MAC based ACLs.
•
New ACE Priority — Indicates the ACE priority, which determines which ACE is matched to a packet
on a first-match basis. The possible field values are 1-2147483647.
•
Source Address — Matches the source MAC address to which packets are addressed to the ACE.
Wildcard masks specify which bits are used and which bits are ignored. A wildcard of 0.0.0.0 indicates
that all the bits are important.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
