416 Configuring Quality of Service
Displaying the QoS Interface Settings Table:
1 Open the Interface Settings page.
2 Click Show All .
The
QoS Interface Settings Table page opens:

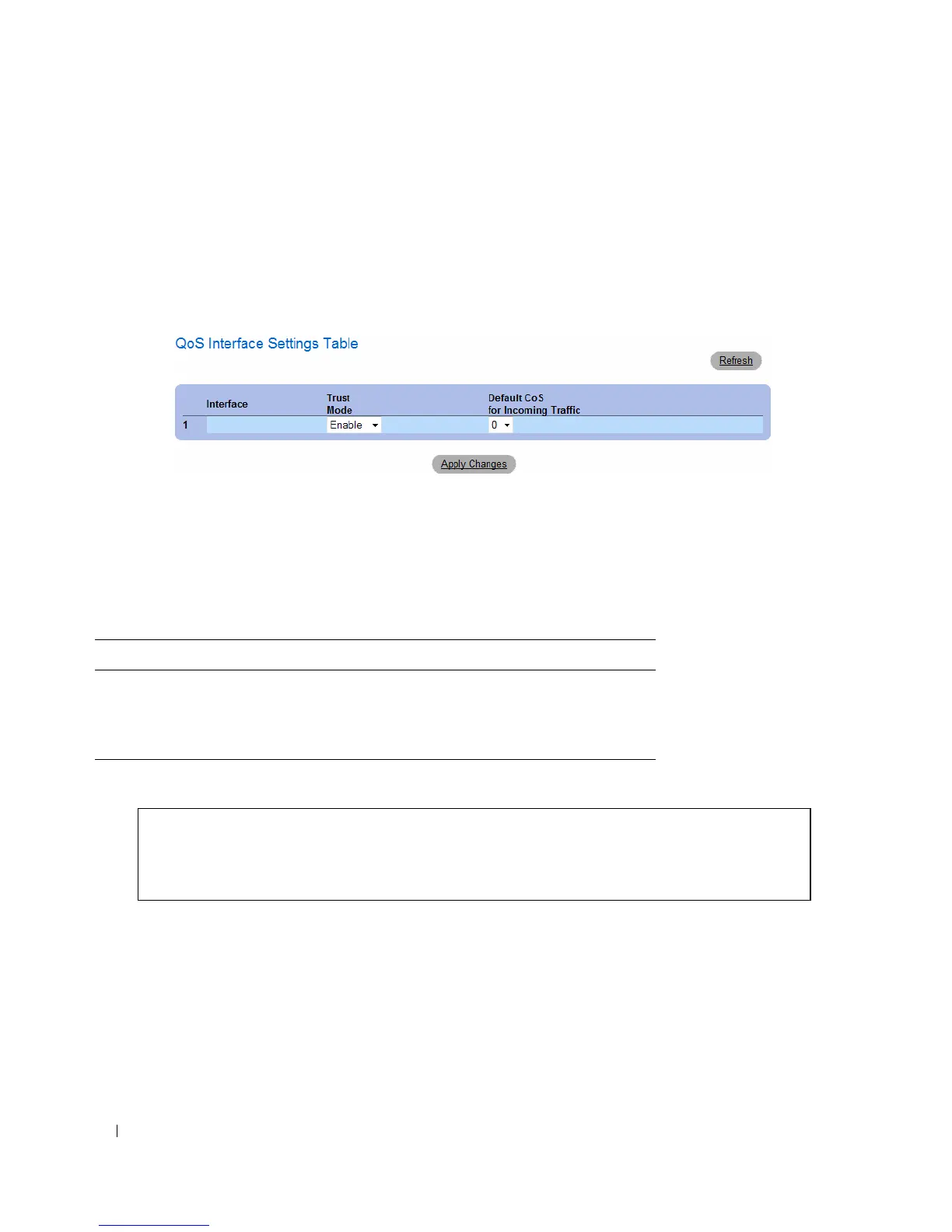

Figure 9-3. QoS Interface Settings Table
Assigning CoS Interfaces Using the CLI Commands
The following table summarizes the equivalent CLI commands for configuring fields in the Interface
Settings page.
The following is an example of the CLI commands:
Defining Bandwidth Settings
The Bandwidth Settings page contains fields for defining the bandwidth settings for a specified egress
interface. Modifying queue scheduling affects the queue settings globally. Queue shaping can be based
per queue and/or per interface. Shaping is determined by the lower specified value. The queue shaping
type is selected in the Bandwidth Settings Page, click Quality of Service → CoS Global Parameters→
Bandwidth Settings in the tree view.
Table 9-4. CoS Interface CLI Commands
CLI Command Description
qos trust Enables trust state for each.
qos cos default-cos Configures the default port CoS value.
no qos trust Disables Trust state on each port.
Console (config)# interface ethernet g5
Console (config-if)# qos trust
Console (config-if)# qos cos 3
