Installing the PowerConnect Device 33
Mounting the Device
Overview
The power connectors for the device are positioned on the back panel. Connecting a DC Redundant
Power Supply (UPS) is optional, but is recommended. The UPS DC connector is located on the back
panel of the device.
Mounting the System
Device Rack Installation
WARNING: Disconnect all cables from the unit before mounting the device in a rack or cabinet.
WARNING: When mounting multiple devices into a rack, mount the devices from the bottom up.
1
Place the supplied rack-mounting bracket on one side of the device ensuring the mounting holes on
the device line up to the mounting holes on the rack mounting bracket. Figure 3-1 illustrates where to
mount the brackets.

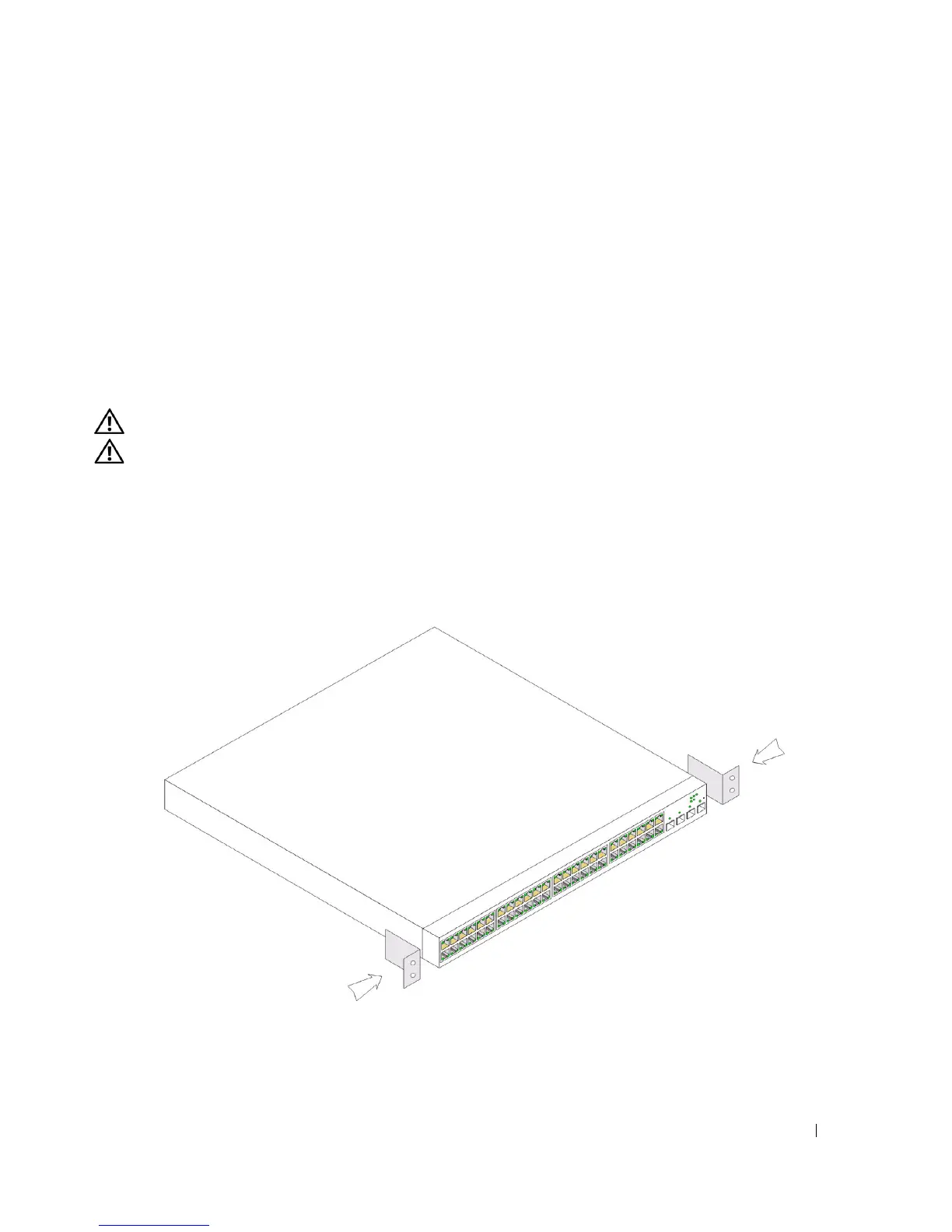

Figure 3-1. Connection Rack Mounting Brackets
2
Insert the supplied screws into the rack mounting holes and tighten with a screwdriver.
3
Repeat the process for the rack-mounting bracket on the other side of the device.
