Viewing Optical Transceiver Diagnostics
The Optical Transceiver Diagnostics page contains fields for performing tests on Fiber Optic cables. Optical
transceiver diagnostics can be performed only when the link is present. To open the Optical Transceiver
Diagnostics page, click System→ Diagnostics→ Optical Transceiver Diagnostics in the tree view.

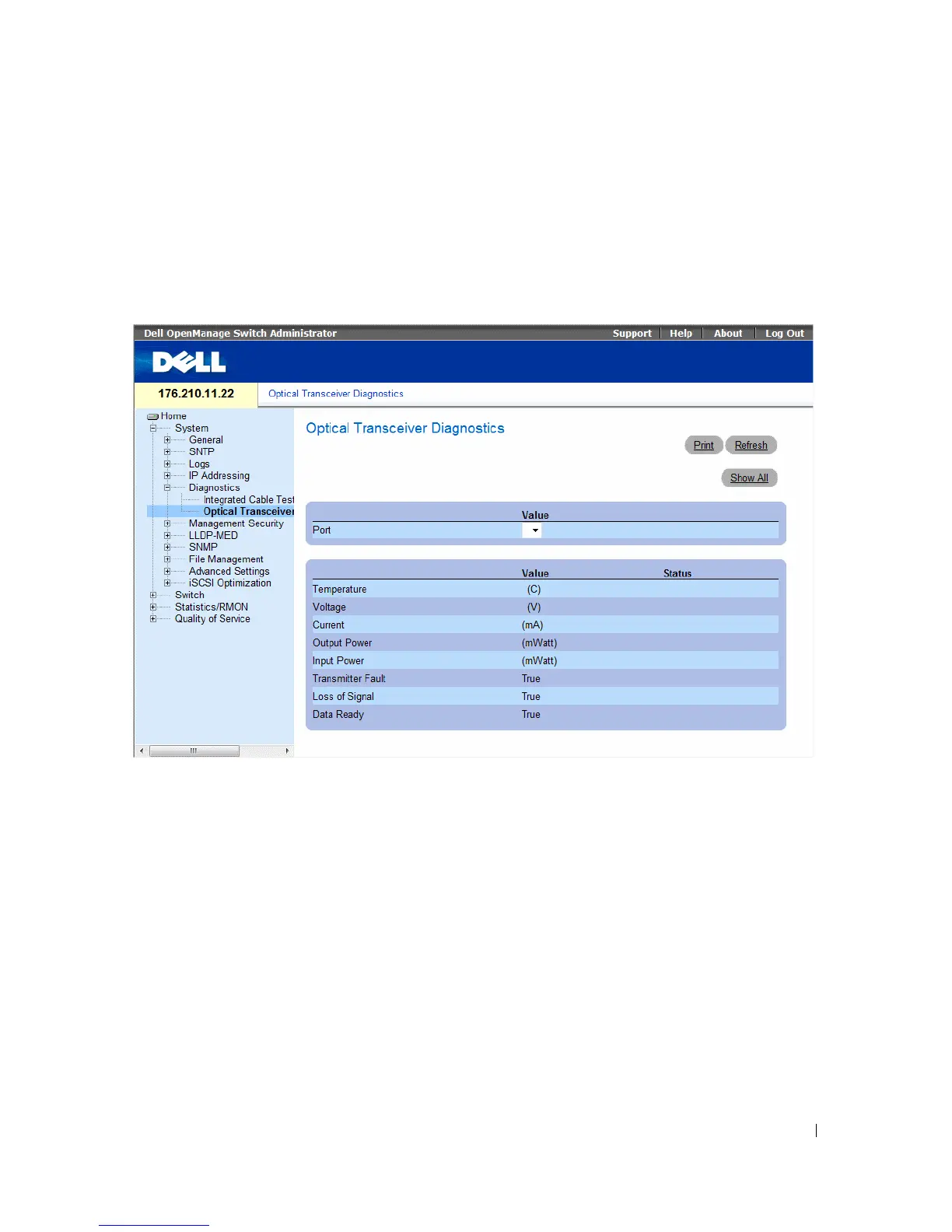

Figure 6-48. Optical Transceiver Diagnostics
• Port — The port to which the fiber cable is connected.
•
Temperature — The temperature (in Celsius) at which the cable is operating.
•
Voltage — The voltage at which the cable is operating.
•
Current — The current at which the cable is operating.
•
Output Power — The rate at which the output power is transmitted.
•
Input Power — The rate at which the input power is transmitted.
•
Transmitter Fault — Indicates if a fault occurred during transmission.
•
Loss of Signal — Indicates if a signal loss occurred in the cable.
•
Data Ready — The transceiver has achieved power up and data is ready.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
