Dell PowerConnect 5424

Configuring Device Information 261
Displaying the ACEs Associated with IP based ACLs
1 Open the Network Security - IP Based ACL page.
2 Click Show All.
The ACEs Associated with IP-ACL opens:

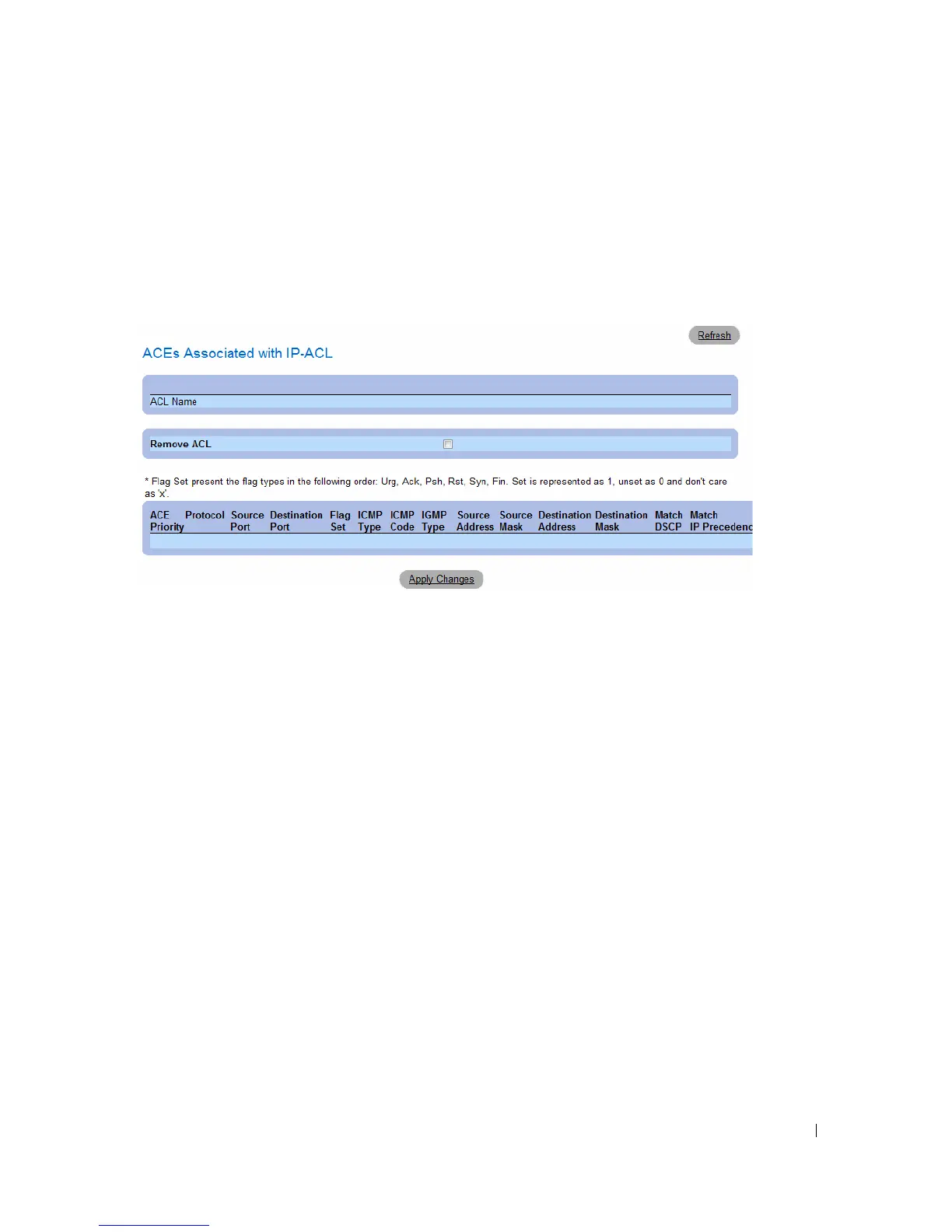

Figure 7-11. ACEs Associated with IP-ACL
Removing an IP based ACL
1 Open the Network Security - IP Based ACL page.
2 Click Show All. The ACEs Associated with IP-ACL Table opens.
3 Check the Remove ACL checkbox.
4 Click Apply Changes .
Removing an IP based ACE
1 Open the Network Security - IP Based ACL page.
2 Click Show All. The ACEs Associated with IP-ACL Table opens.
3 Check the Remove checkbox next to an ACE.
4 Click Apply Changes .
