Dell PowerConnect 5424

Configuring Device Information 325
• Status — The VLAN type. Possible values are:
–
Dynamic — The VLAN was dynamically created through GVRP.
–
Static — The VLAN is user-defined.
–
Default — The VLAN is the default VLAN.
•
Unauthorized Users — Enables or disables unauthorized users from accessing a VLAN.
•
Remove VLAN — When selected, removes the VLAN from the VLAN Membership Table.
Adding New VLANs
1 Open the VLAN Membership page.
2 Click Add .
The
Create New VLAN page opens.

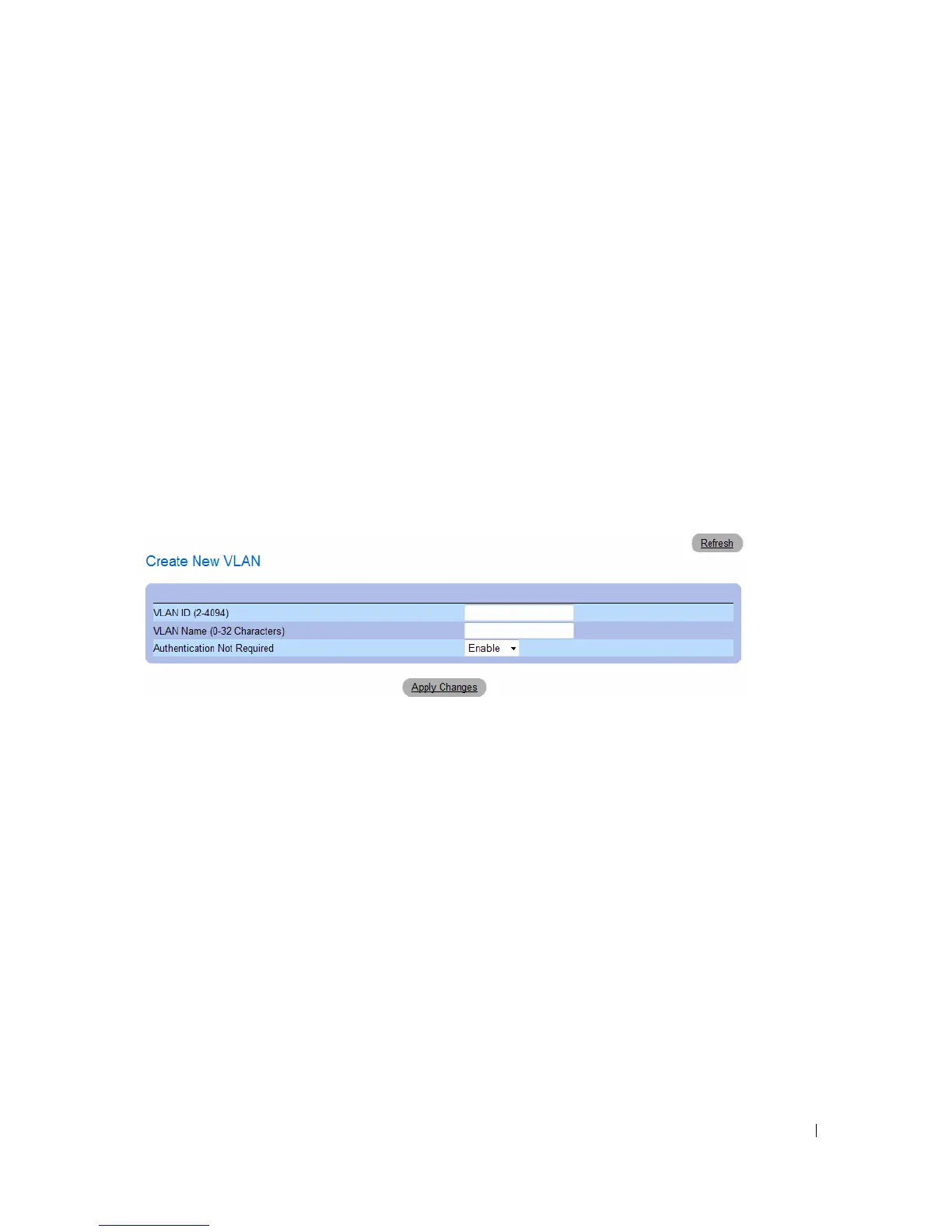

Figure 7-41. Create New VLAN
3 Enter the VLAN ID and name.
4 Click Apply Changes .
The new VLAN is added, and the device is updated.
Modifying VLAN Membership Groups
1 Open the VLAN Membership page.
2 Select a VLAN from the Show VLAN drop-down menu.
3 Modify the fields as desired.
4 Click Apply Changes .
The VLAN membership information is modified, and the device is updated.
Deleting VLAN Membership Groups
1 Open the VLAN Membership page.
2 Select a VLAN in the Show VLAN field.
