• Frame Type — Packet type accepted on the port. Possible values are:
–
Admit Tag Only — Only tagged packets are accepted on the port.
–
Admit All — Both tagged and untagged packets are accepted on the port.
•
Ingress Filtering — Enables or disables Ingress filtering on the port. Ingress filtering discards packets
that are destined to VLANs of which the specific LAG is not a member.
•
Current Reserve VLAN — The VLAN currently designated by the system as the reserved VLAN.
•
Reserve VLAN for Internal Use — The VLAN selected by the user to be the reserved VLAN if not in
use by the system.
Assigning Port Settings
1 Open the VLAN Port Settings page.
2 Select the port to which settings need to be assigned from the Port drop-down menu.
3 Complete the remaining fields on the page
4 Click Apply Changes .
The VLAN port settings are defined, and the device is updated.
Displaying the VLAN Port Table
1 Open the VLAN Port Settings page.
2 Click Show All.
The VLAN Port Table opens.

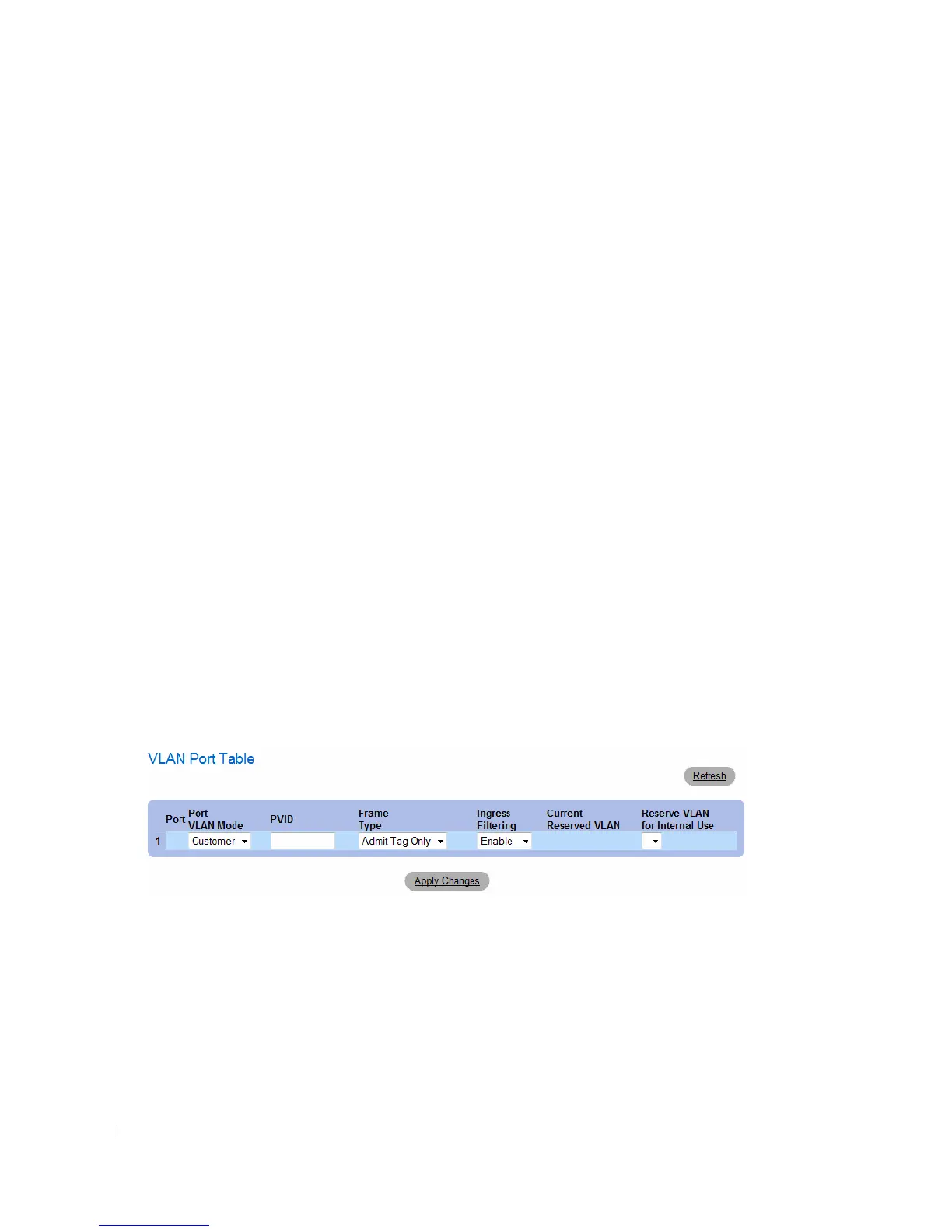

Figure 7-43. VLAN Port Table
