Dell PowerConnect 5424

Viewing Statistics 393

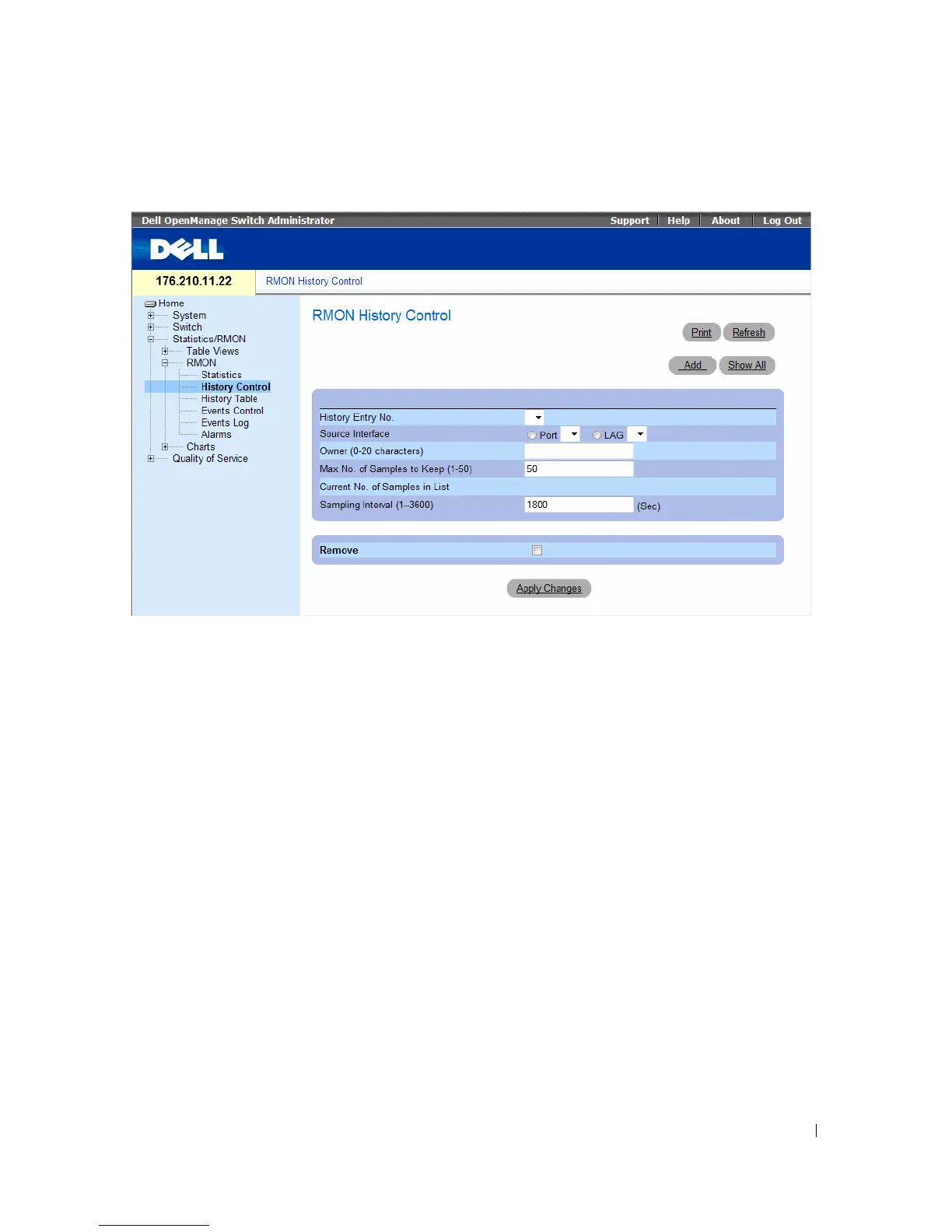

Figure 8-8. RMON History Control
• History Entry No. — Entry number for the History Control Table page.
•
Source Interface — Port or LAG from which the history samples were taken.
•
Owner (0-20 characters) — RMON station or user that requested the RMON information.
•
Max No. of Samples to Keep (1-50) — Number of samples to be saved. The default value is 50.
•
Current No. of Samples in List — The current number of samples taken.
•
Sampling Interval (1-3600) — Indicates in seconds the time that samples are taken from the ports.
The possible values are 1-3600 seconds. The default is 1800 seconds (30 minutes).
•
Remove — When selected, removes the History Control Table entry.
Adding a History Control Entry
1 Open the RMON History Control page.
2 Click Add .
The
Add History Entry page opens.
3 Complete the fields in the dialog.
4 Click Apply Changes .
The entry is added to the
History Control Table .
