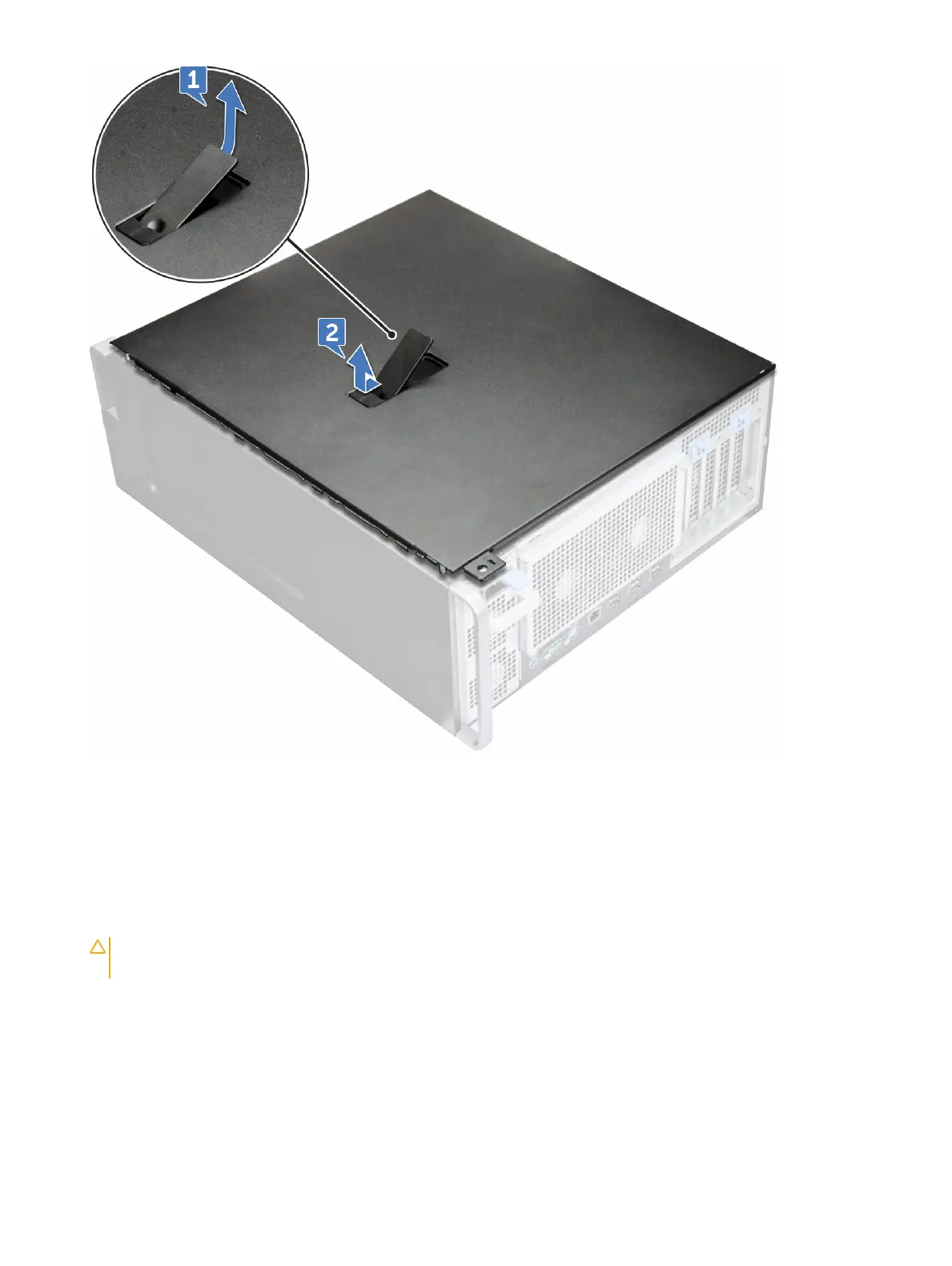

5 Lift the cover to remove it from the system.
Installing the side cover
1 First hold and align the bottom of the side cover to the chassis.
2 Ensure that the hook on the bottom of the side cover snaps into the notch on the system.
3 Press the system cover until it clicks into place.
CAUTION
: The system will not power on without the side cover. Also, the system will shut down if the side cover is removed
while the system is on.
4 Follow the procedure in After working inside your computer .
12
Removing and installing components
