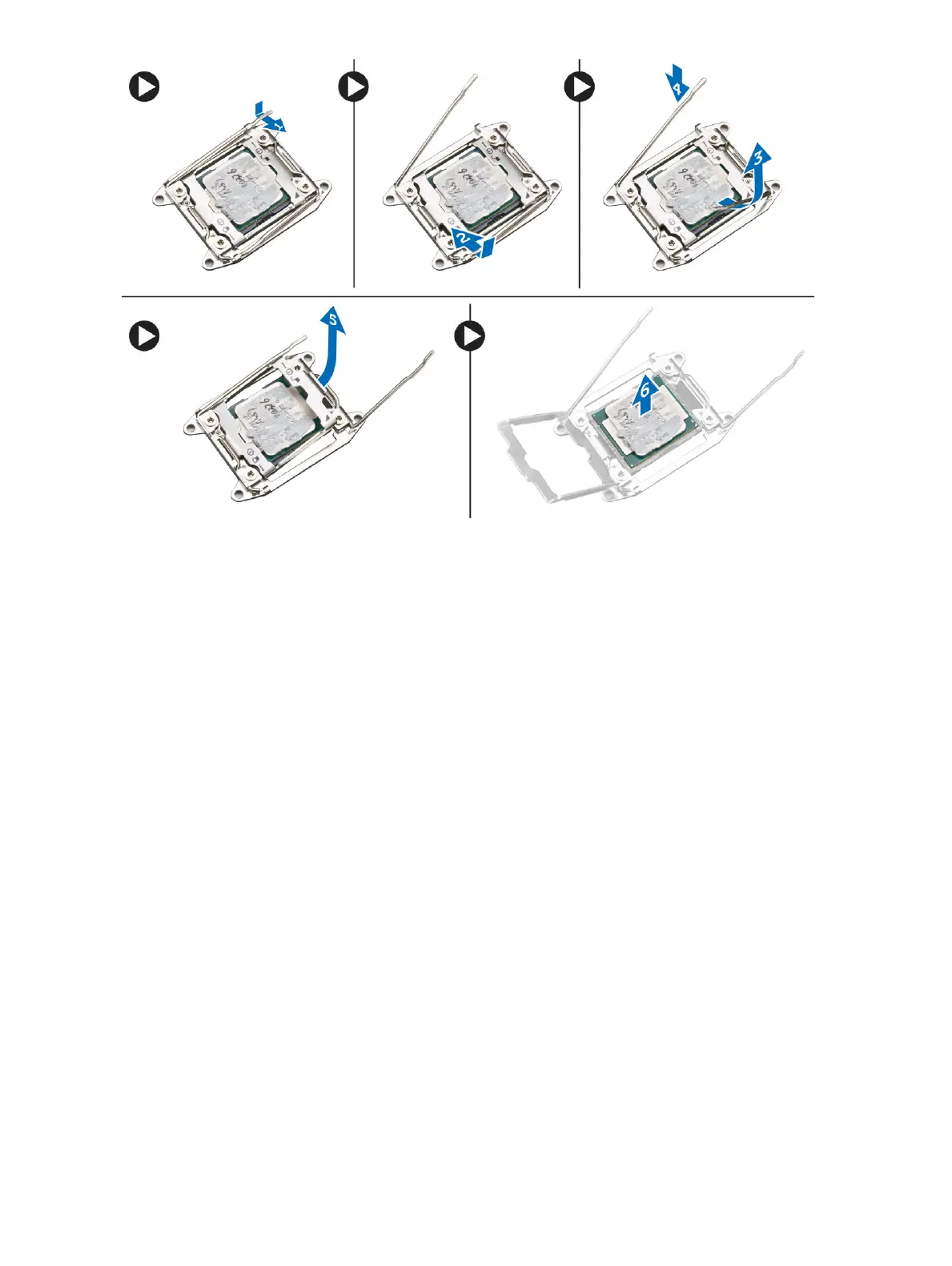

Installing the processor
1 Insert the processor into the processor socket. Make sure the processor is properly seated.
2 Gently lower the processor cover.
3 Press the two release levers down and then move it in to secure it with the retention hook.
4 Install the:
a heat sink and CPU fan assembly
b air shroud
c side cover
5 Follow the procedure in After working inside your computer.
Front system fan
Removing the front system fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a side cover
b front bezel
c PCIe holder
3 To remove the front system fan:
a Unroute the following cables from the card holder [3]:
• SATA 0,1, 2, 3, 4, 5 cable and ODD 0, 1 cable [1]
• USB 3.1 cable [2]
50
Removing and installing components
