Installing heat sink and CPU fan assembly

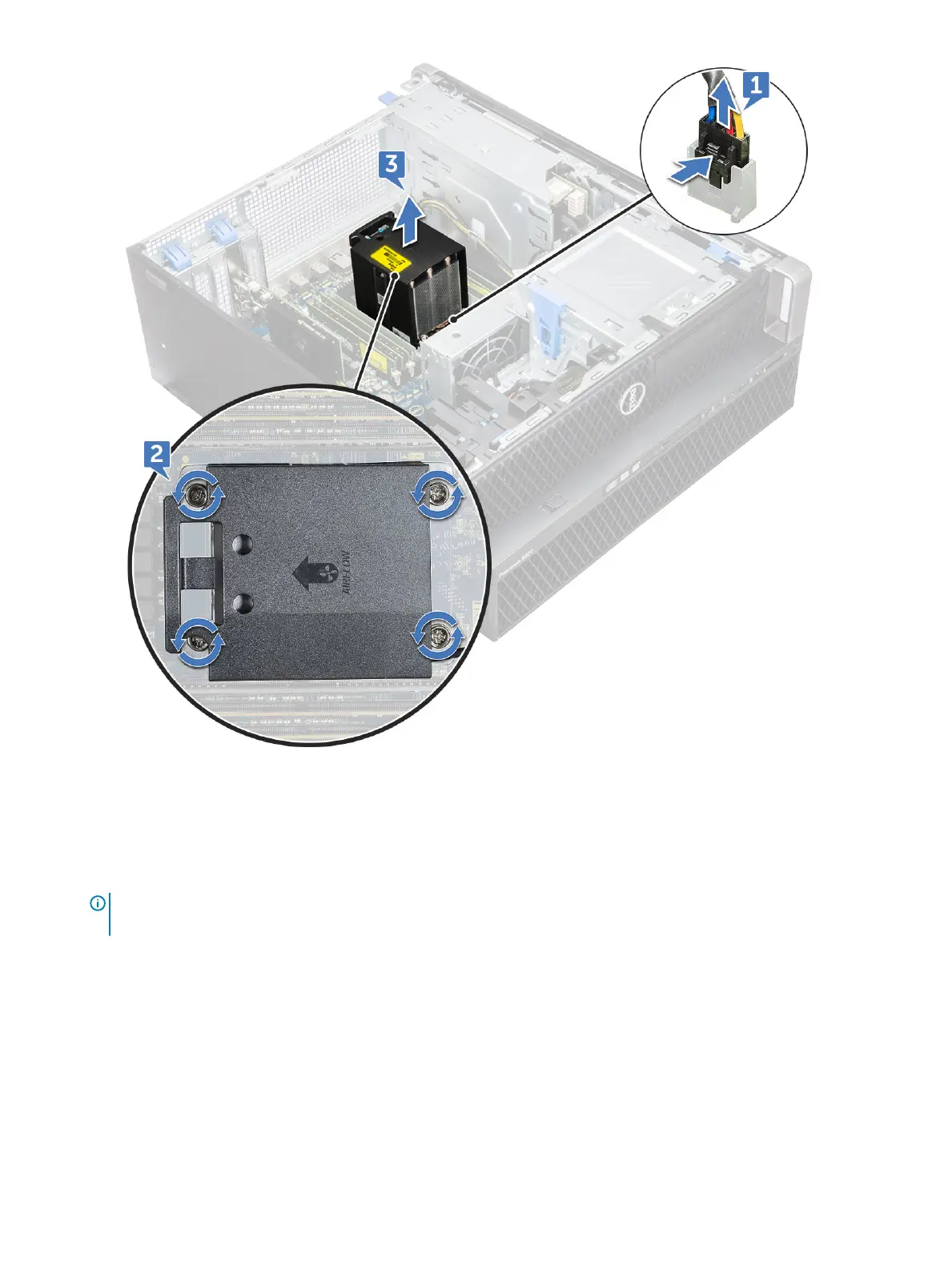

1 Place the heat sink and CPU fan assembly on the CPU slot.
2 Replace the four screws in the diagonal order (1,2,3,4), to secure the heat sink and CPU fan assembly to the system board.
NOTE
: When installing the heat sink and CPU fan assembly into the system ensure that the airow arrow is pointed towards
the rear of the system.
3 Connect the CPU fan cable to the system board.
4 Install the:
a air shroud
b side cover
5 Follow the procedure in After working inside your computer.
