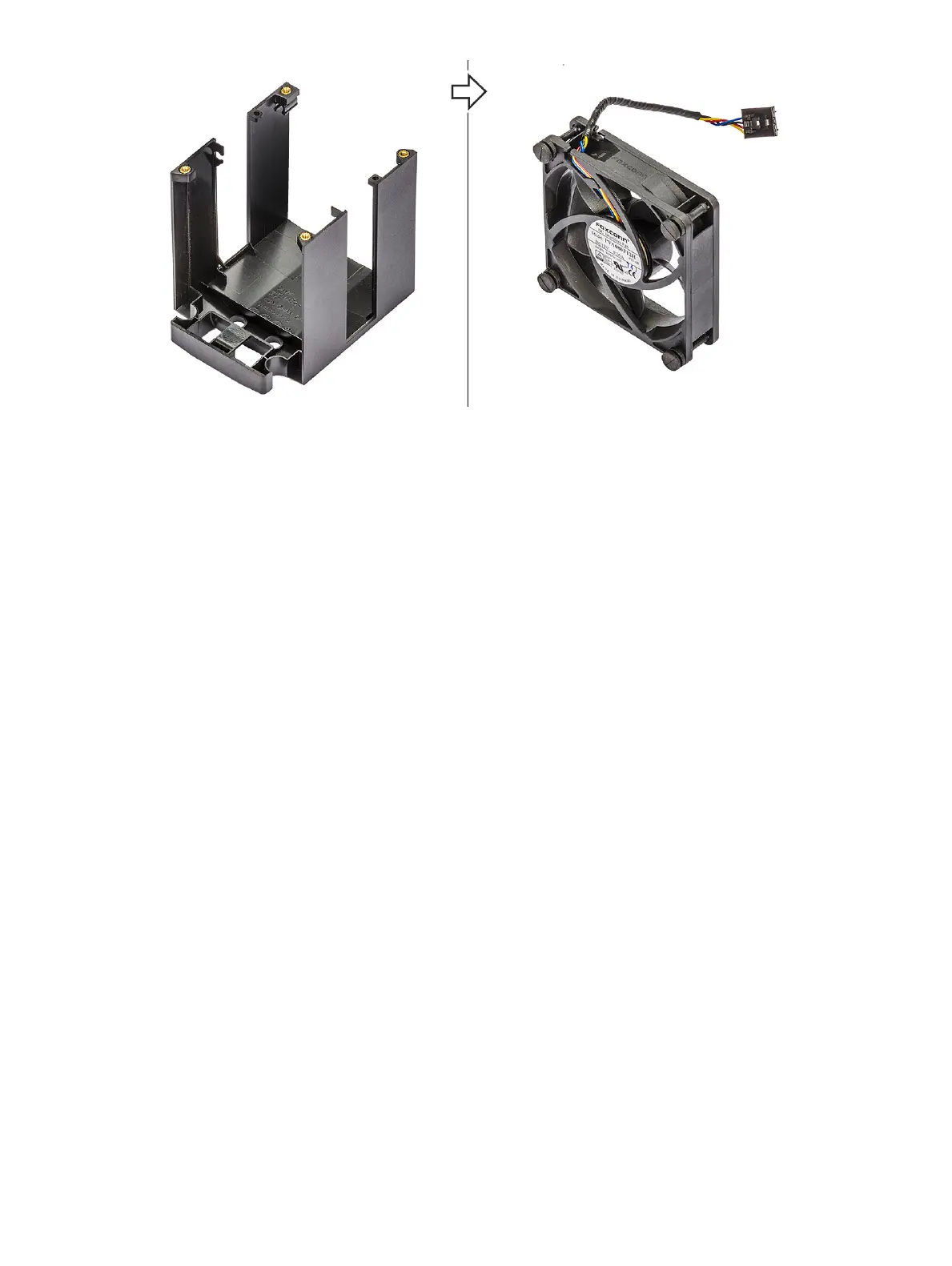

Installing the CPU fan
1 Attach the four rubber grommets of the CPU fan to the fan bracket.
2 Place the CPU fan to its position on the heat sink.
3 Route the fan cable to its holder in the fan bracket.
4 Replace the 4 screws securing the heat sink and the CPU fan.
5 Install the:
a heat sink and CPU fan assembly
b air shroud
c side cover
6 Follow the procedure in After working inside your computer.
Processor
Removing the processor
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a side cover
b air shroud
c heat sink and CPU fan assembly
3 To remove the processor:
a Press the left side release lever [1] down, then move it inward to release it from the retention hook.
b Press the right side release lever [2] down, then move it inward to release it from the retention hook.
c Open the release lever [3, 4] to unlock the processor cover.
d Raise the processor cover [5].
e Lift the processor [6] to remove it from the socket and place it into anti-static packaging.
Removing and installing components
49
