Installing the front bezel

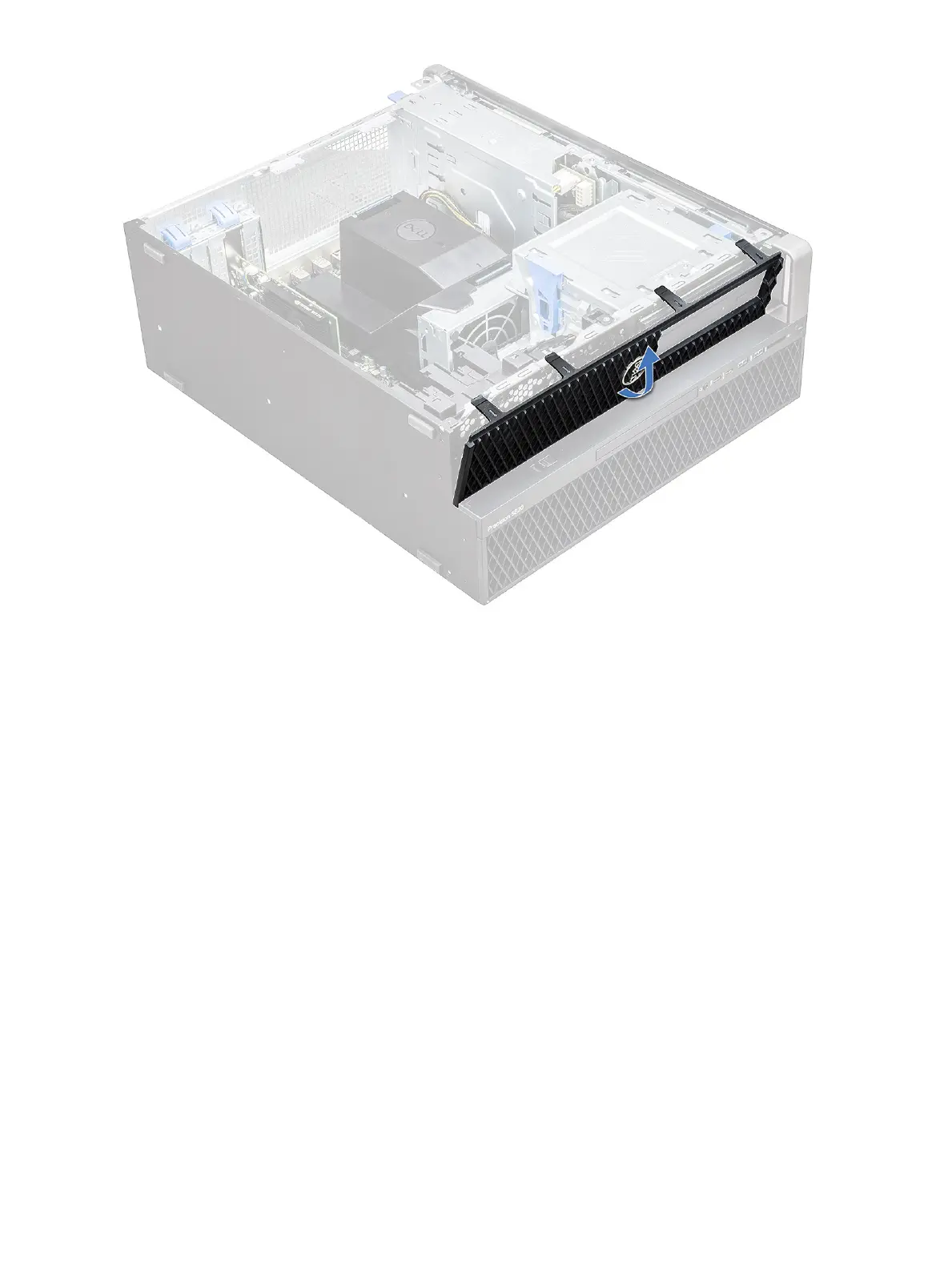

1 Hold the bezel and ensure that the hooks on the bezel snap into the notches on the system.
2 Rotate the bezel forward and press the front bezel until the tabs click into place.
3 Follow the procedure in After working inside your computer.
Hard Disk Drive bezel
Removing HDD bezel
1 Follow the procedure in Before working inside your computer.
2 Remove the side cover.
3 To remove the HDD bezel:
a Press the blue unlock button [1] on the edge of ODD bay.
b Slide the latch [2] to the unlock position, on the front I/O bezel.
c Rotate forward and lift the HDD bezel [3] away from the system.
