Installing the 5.25 ODD bay
1. Place the ODD bracket into the system slot.
2. Replace the (6-32 X 6.0mm) screws.
3. Install the:
a) ODD
b) front bezel
c) side cover
4. Follow the procedure in After working inside your computer
Front input and output panel
Removing front input and output panel
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) side cover
b) front bezel
c) front input and output bezel
d) 5.25 inch ODD bracket
3. To remove the front input and output(I/O) panel:

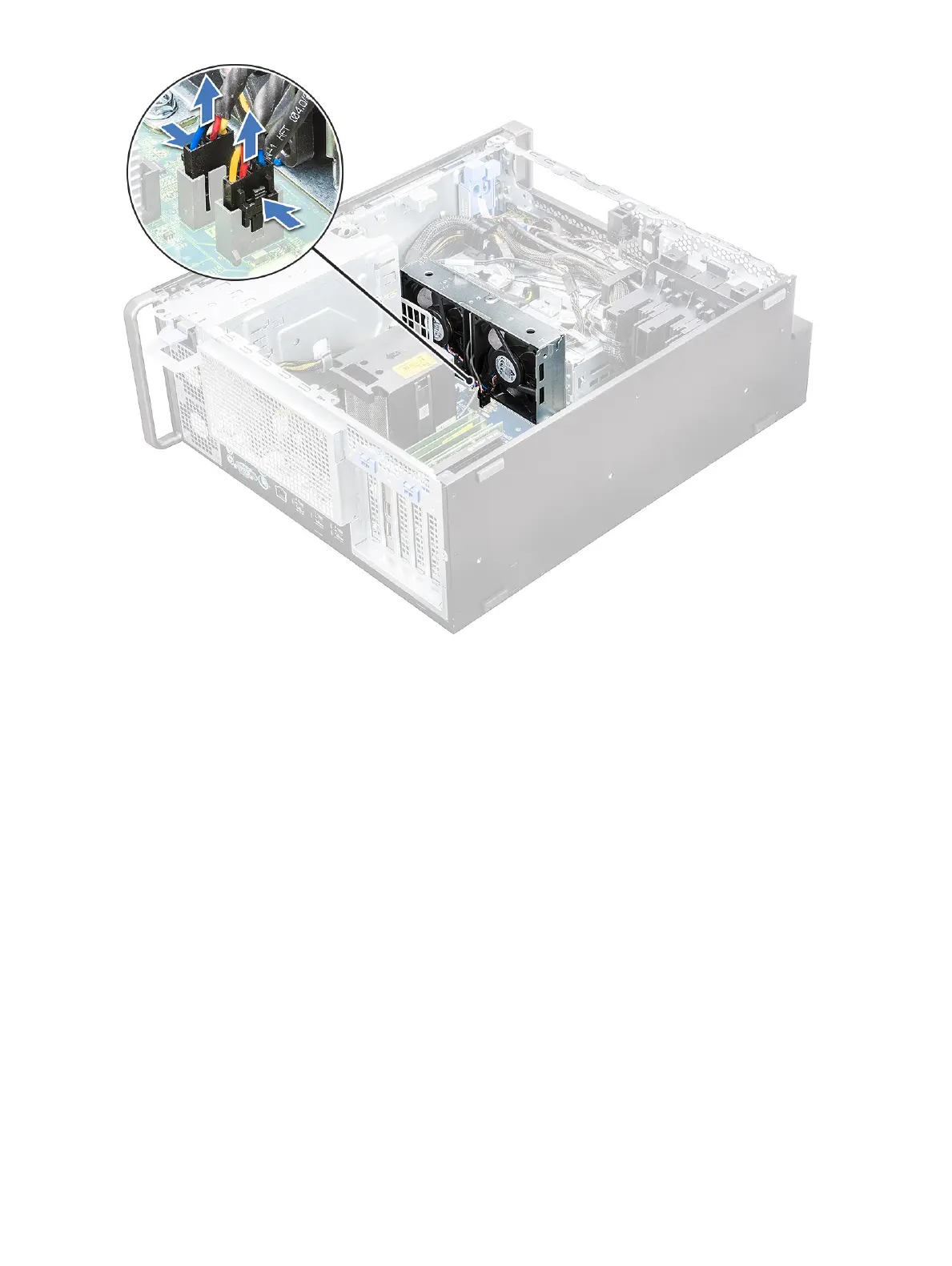

a) Disconnect the intrusion switch cable [1], USB 3.1 cable [2], front I/O power cable [3], USB 3.1 cable [4], Speaker cable [5], Audio
cable [6]
Removing and installing components
41
