c front bezel
d side cover
6 Follow the procedure in After working inside your computer.
Input and output panel bracket
Removing input and output panel bracket
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a side cover
b front bezel
c front input and output bezel
d 5.25 inch ODD bracket
e front input and output panel

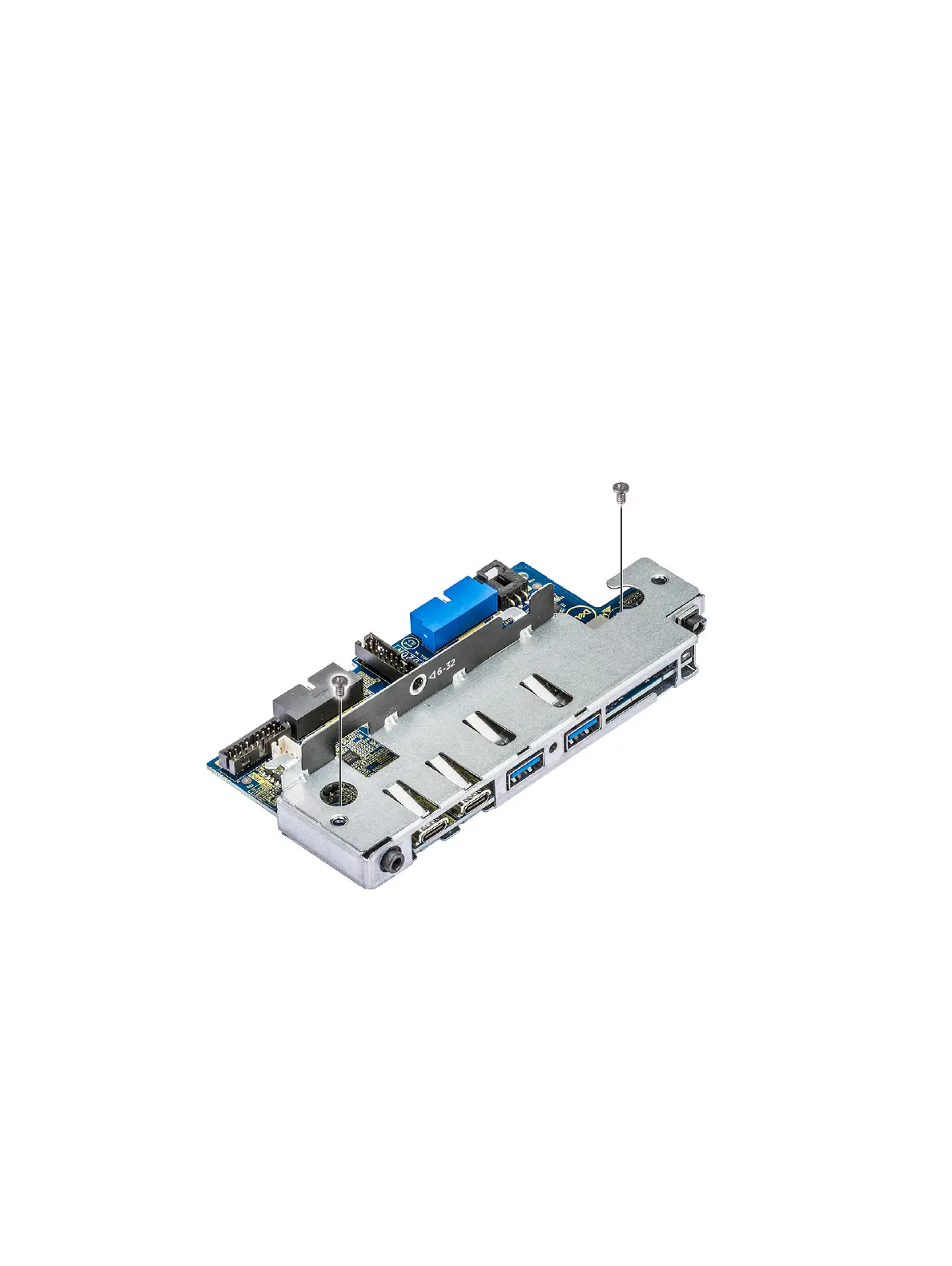

3 To remove the input and output(I/O) panel bracket:
a Remove the two screws.
b Slide the I/O module out of the bracket.
Removing and installing components
31
