Power supply unit (PSU)
Removing the PSU
1 Follow the procedure in Before working inside your computer.
2 Disconnect the power cable from the system.

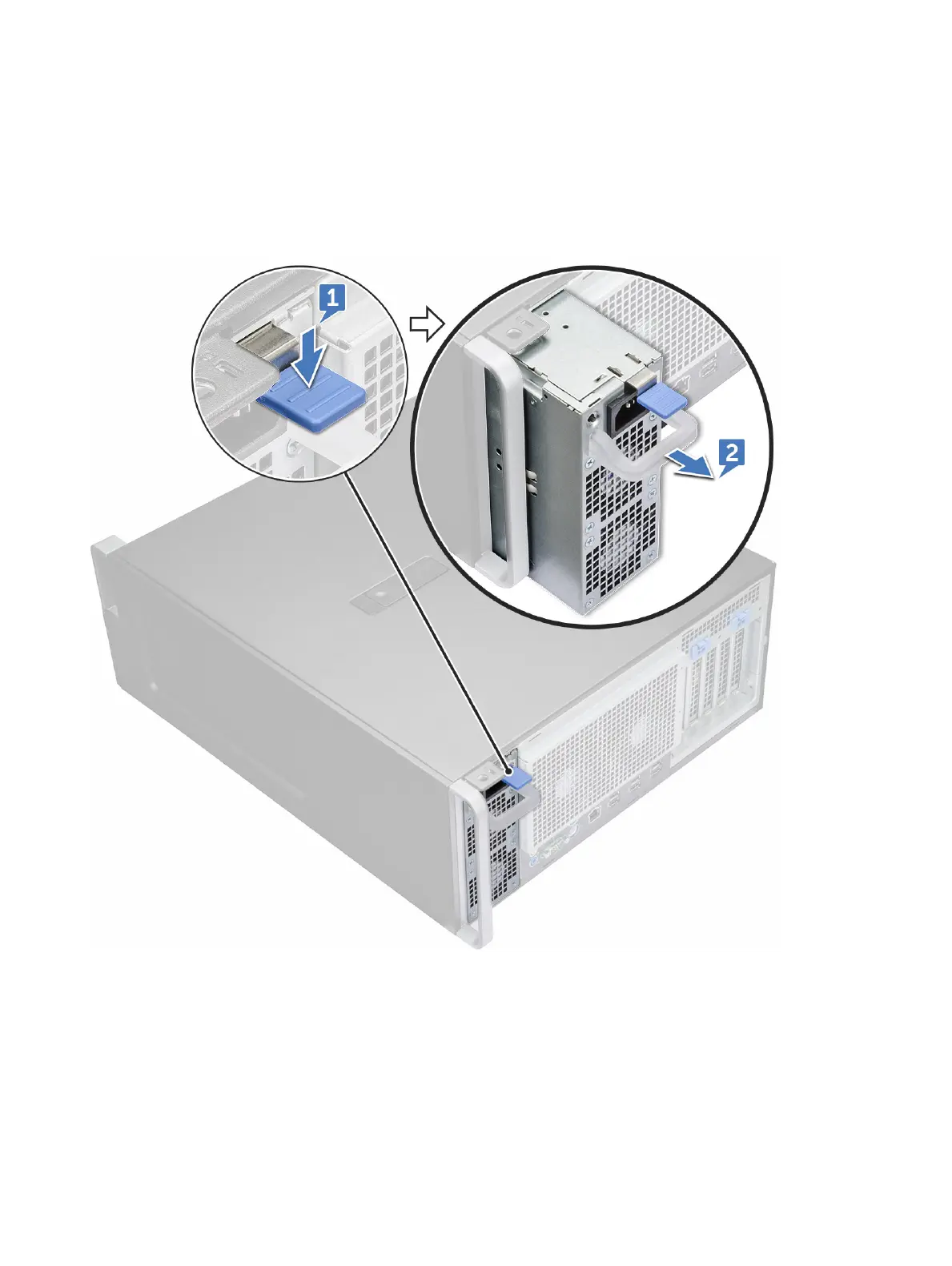

3 Press the PSU release latch [1] and slide the power supply away from the system [2].
Installing the PSU
1 Slide in the power supply unit to the PSU slot on the system.
2 Connect the power cable to the system.
3 Follow the procedure in After working inside your computer
Removing and installing components
13
