Removing the internal chassis speaker
1 Follow the procedure in Before working inside your computer.
2 Remove the: .
a side cover
b front bezel
c 5.25 inch ODD bracket

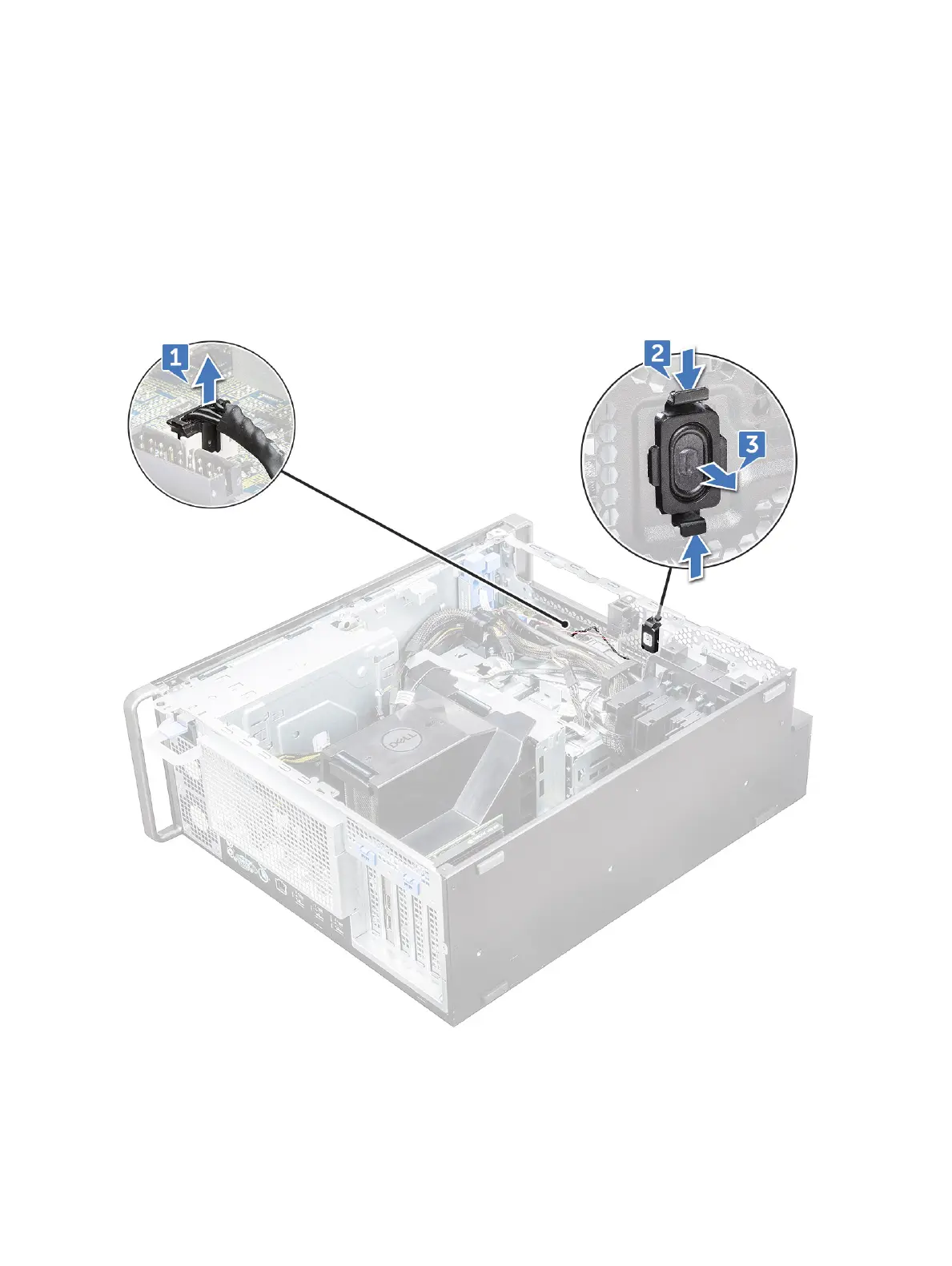

3 To remove the internal chassis speaker:
a Disconnect the speaker cable [1] from the front I/O module.
b Press the speaker securing tabs [2], then pull to release it from the system.
c Gently push the speaker [3] with its cable out of the system.
34 Removing and installing components
