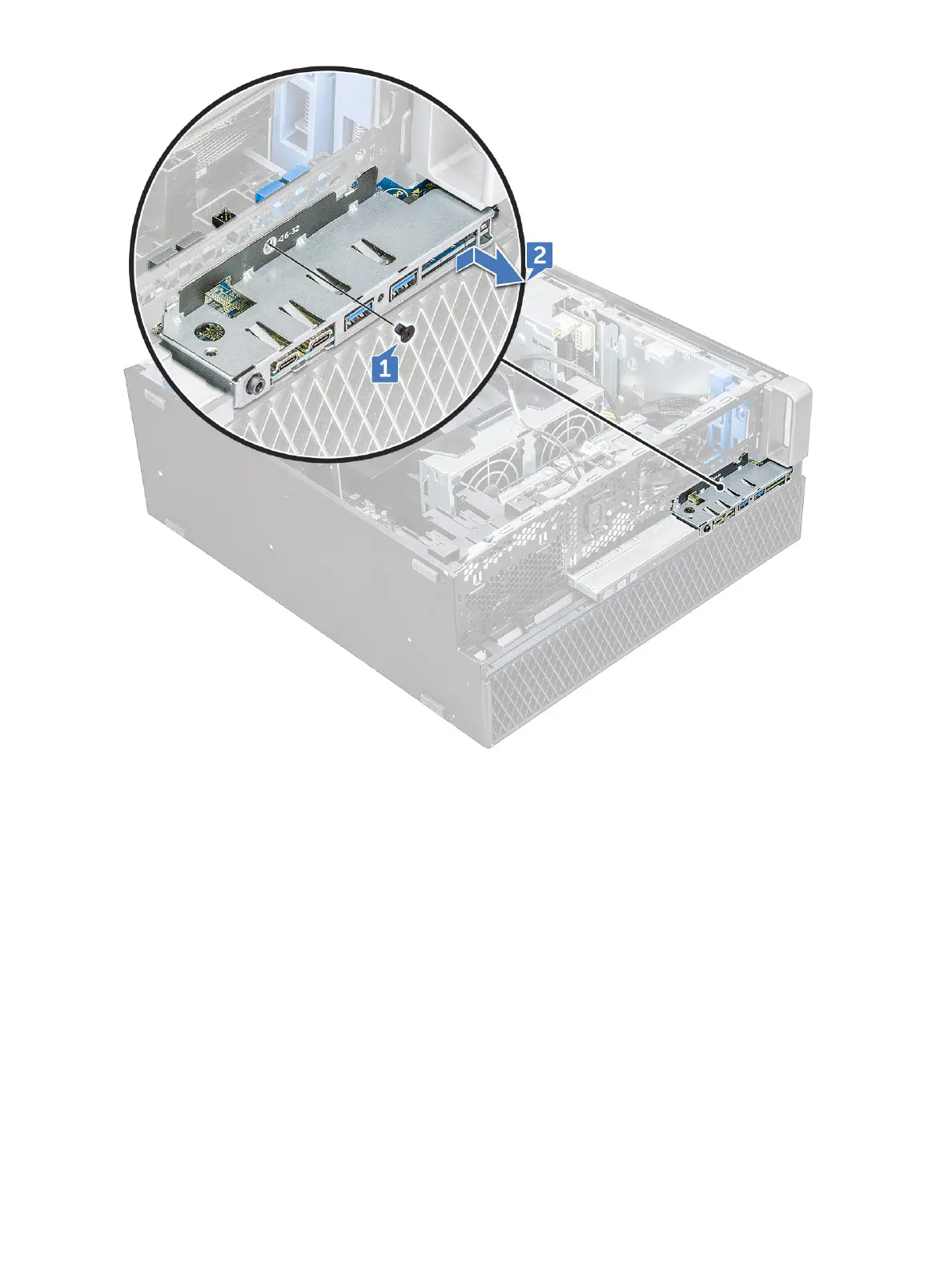

Installing front input and output panel
1 Insert the input and output(I/O) panel onto its slot in the system.
2 Slide the panel to secure the hooks into the chassis hole.
3 Tighten the screw to secure the front I/O panel to the chassis.
4 Connect the following cables:
• intrusion switch cable
• USB 3.1 cable
• front I/O power cable
• front I/O power cable
• USB 3.1 cable
• speaker cable
• audio cable
5 Install the:
a front input and output bezel
b 5.25 inch ODD bracket
30
