Expansion card
Removing the expansion card
1 Follow the procedure in Before working inside your computer.
2 Remove the side cover.
3 To remove the expansion card:
NOTE: For expansion card with VGA power, disconnect the data or power cable connected to the expansion card.

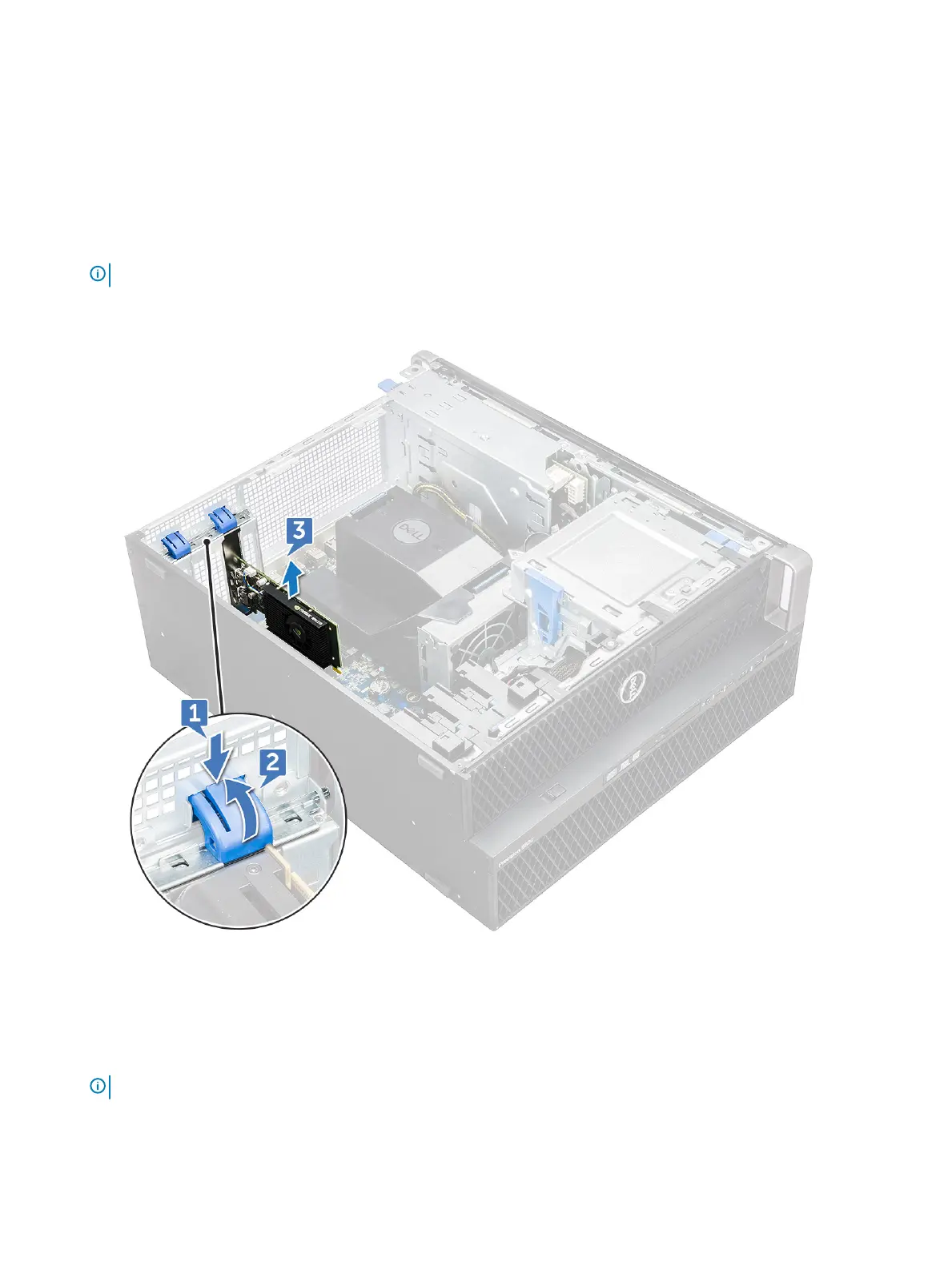

a Press [1] and rotate the expansion card locking latch backward [2], to unlock the ller bracket.
b Lift the expansion card [3] from the PCIe slot on the system board.
Installing the expansion card
1 Align and place the expansion card to the PCIe slot on the system board.
2 Press it down so that it is securely seated on the slot.
NOTE
: For expansion card with VGA power, connect the data or power cable to the expansion card.
3 Rotate both the expansion card locking latch forward, on the ller bracket, to secure the expansion card to the system board.
4 Install the side cover.
38
Removing and installing components
