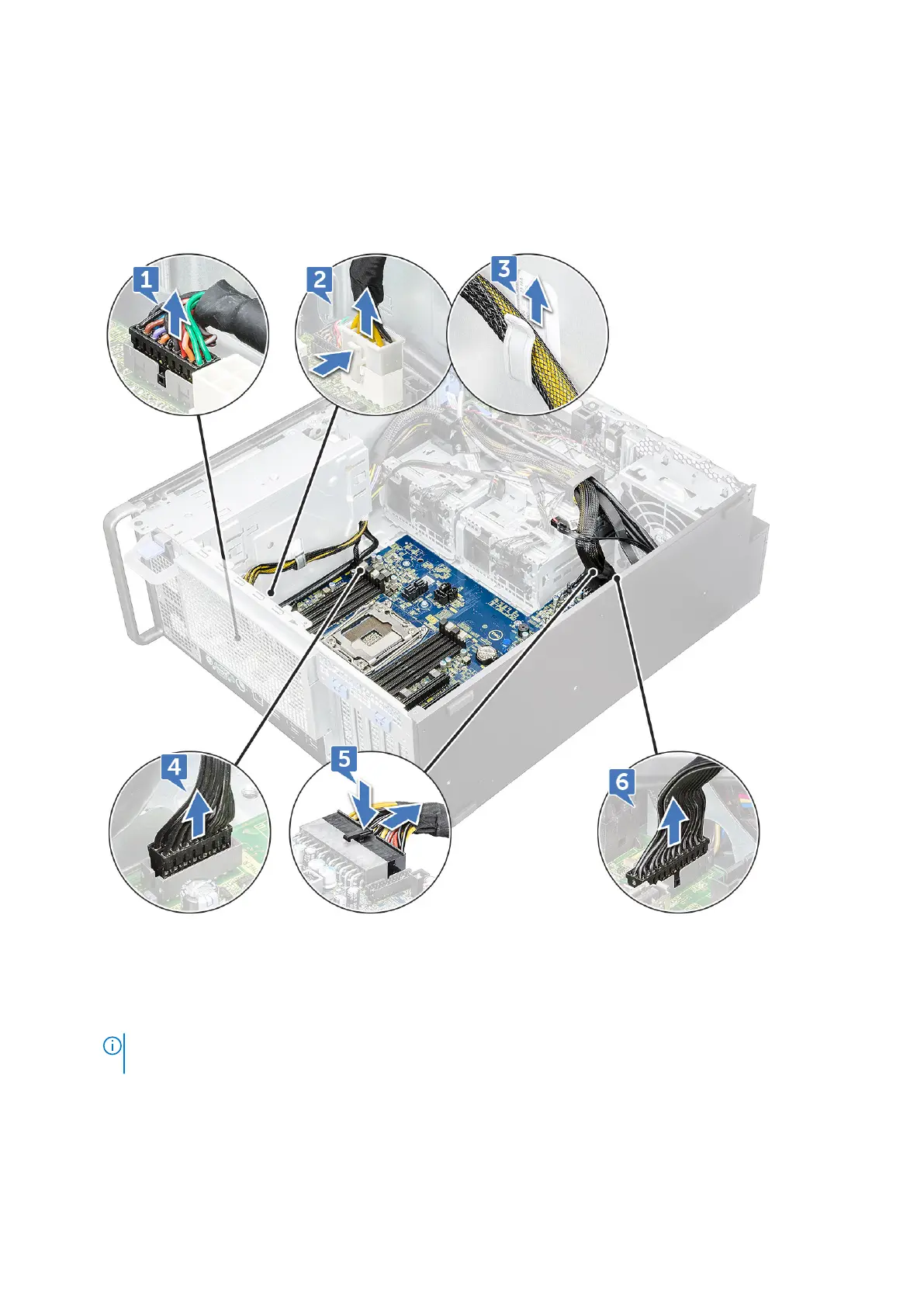

c) Disconnect the following cables from the system board connectors:
• audio cable [1]
• power cable [2]
• cable holder [3]
• power control cable [4]
• 24 Pin power cable [5]
• front I/O panel [6]
d) Disconnect the following cables:
• SATA cables and ODD cables [1]
• USB 3.1 cable [2]
• Front system fan cable
• Flex0 and Flex1 hard drive data cable
NOTE:
Do not pull the connector by the cable wires . Instead, disconnect the cable by pulling on the connector
end. Pulling on the cable wires may loosen them from the connector.
