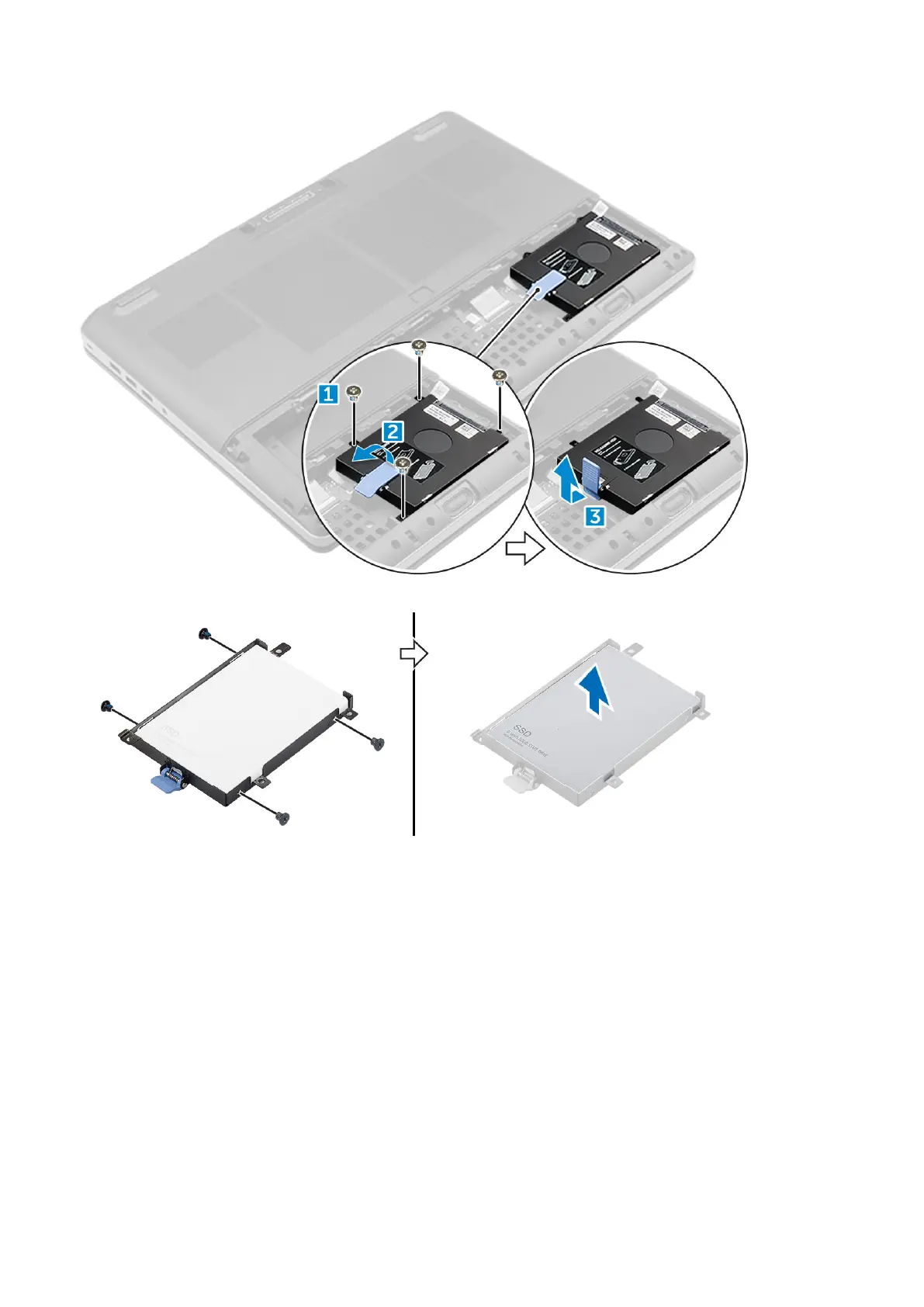

4. Remove the M3.0x3.0 screws that secure the hard drive. Lift the hard drive from the bracket.
Installing the hard drive
1. Replace the M3.0x3.0 screws to secure the hard drive to the hard drive bracket.
2. Insert the hard drive into its slot in the computer.
3. Replace the M3.0x3.0 screws to secure the hard drive to the computer.
4. Install the:
a) battery
b) battery cover
5. Follow the procedure in After working inside your computer.
14
Disassembly and reassembly
