Display bracket
Removing the display bracket
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) battery cover
b) battery
c) base cover
d) hard drive
e) keyboard
f) palmrest
g) display assembly
h) display bezel
i) display panel

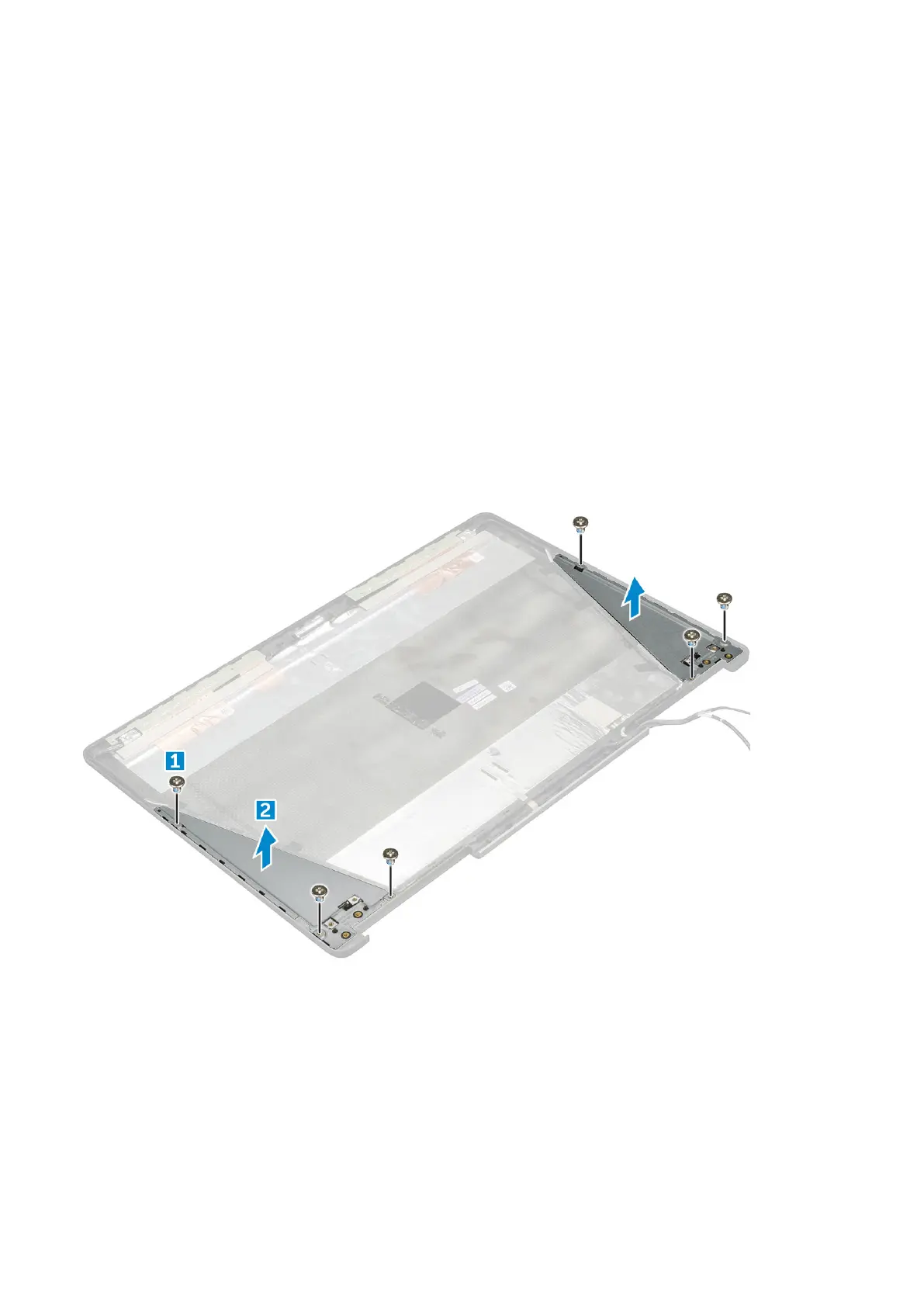

3. To remove display bracket:
a) Remove the M2.5x4.0 screws that secure display cover [1].
b) Remove the display brackets from the display cover [2].
Installing the display bracket
1. Place the display brackets in its slot on the display cover.
2. Replace the M2.5x4.0 screws to secure the display bracket..
3. Install the:
a) display panel
b) display bezel
c) display assembly
d) palmrest
48
Disassembly and reassembly
