5. Follow the procedure in After working inside your computer.
USB board
Removing the USB board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) battery cover
b) battery
c) base cover
d) hard drive
e) keyboard
f) palmrest
3. To remove USB board:

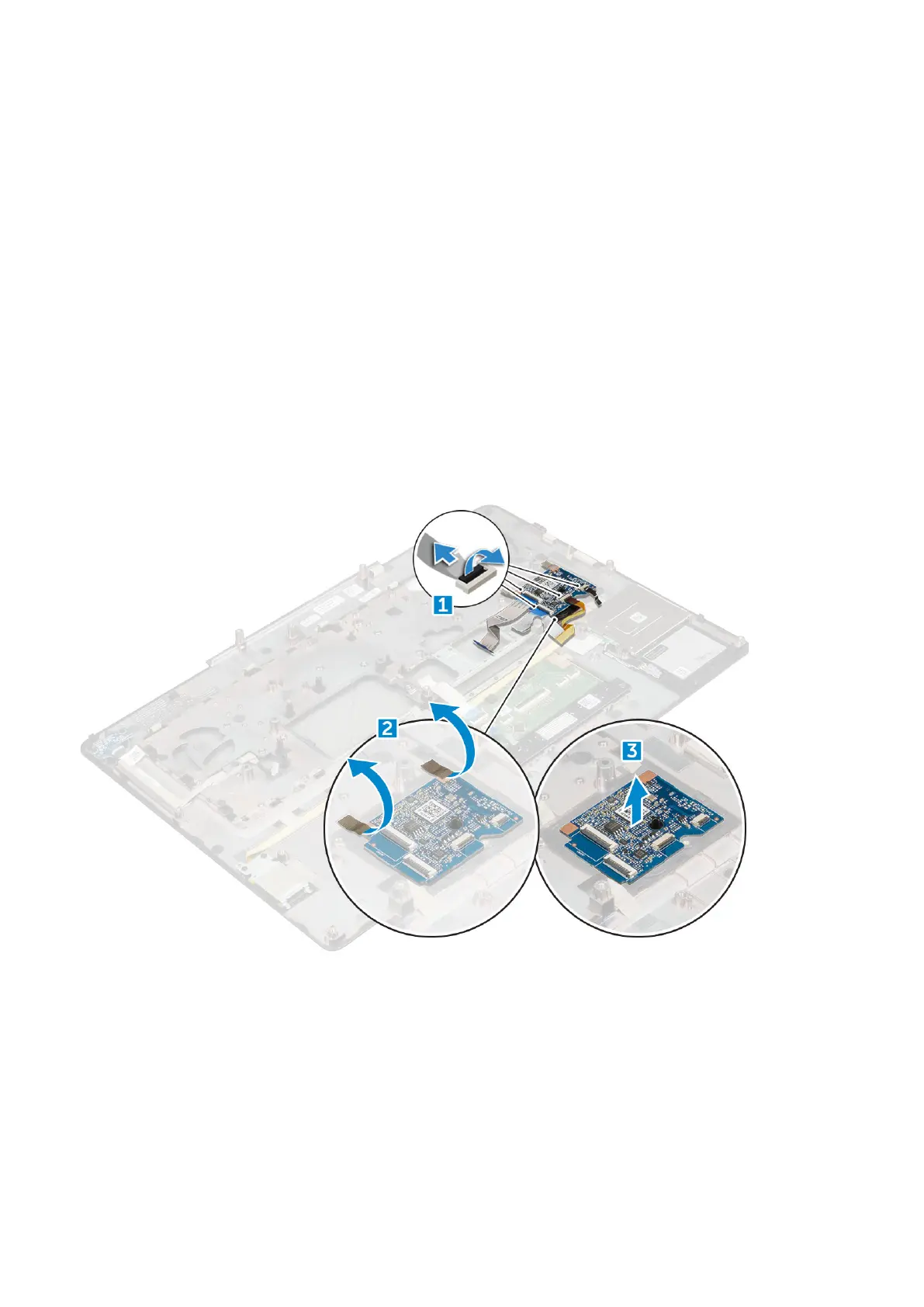

a) Disconnect the USB board cable from the computer [1].
b) Remove the adhesive tape that secures USB board to the computer [2].
c) Lift the USB board from the computer [3].
Installing the USB board
1. Place the USB board on the computer.
2. Affix the adhesive tape to secure the USB board on the computer
3. Connect the USB board cable.
4. Install the:
a) palmrest
b) keyboard
c) hard drive
Disassembly and reassembly
31
