e) battery
f) battery cover
5. Follow the procedure in After working inside your computer.
Graphics card
Removing the graphic card
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) battery cover
b) battery
c) base cover
d) hard drive
e) keyboard
f) palmrest
g) heat sink

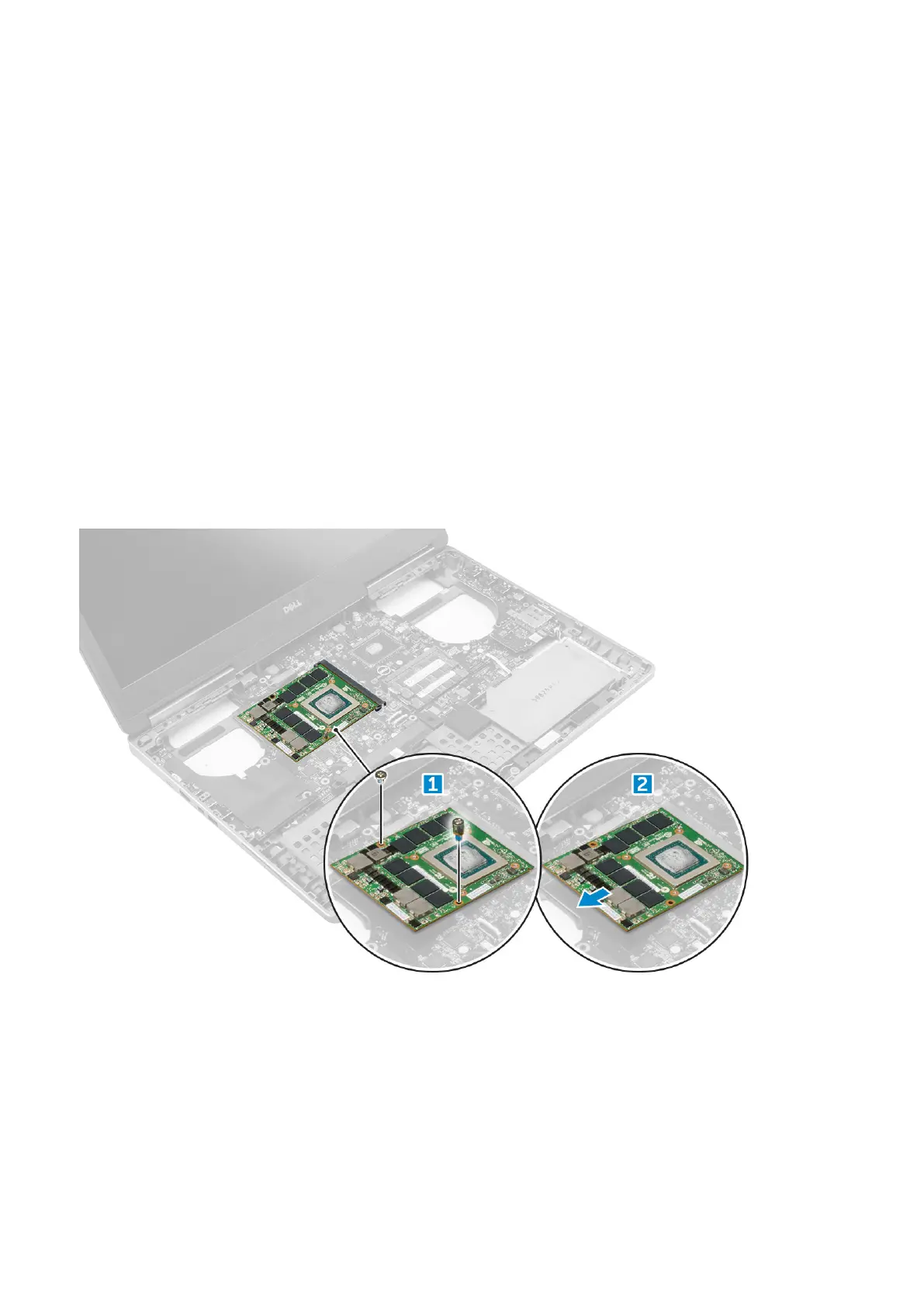

3. To remove the graphic card:
a) Remove the M2.0x3.0 screws that secure the graphic card to the computer [1].
b) Remove the graphic card from the computer [2].
Installing the graphic card
1. Slide the graphic card into its original position in the computer.
2. Replace the M2.0x3.0 screws to secure the graphic card to the computer.
3. Install the:
a) heat sink
b) palmrest
c) keyboard
d) hard drive
Disassembly and reassembly
35
