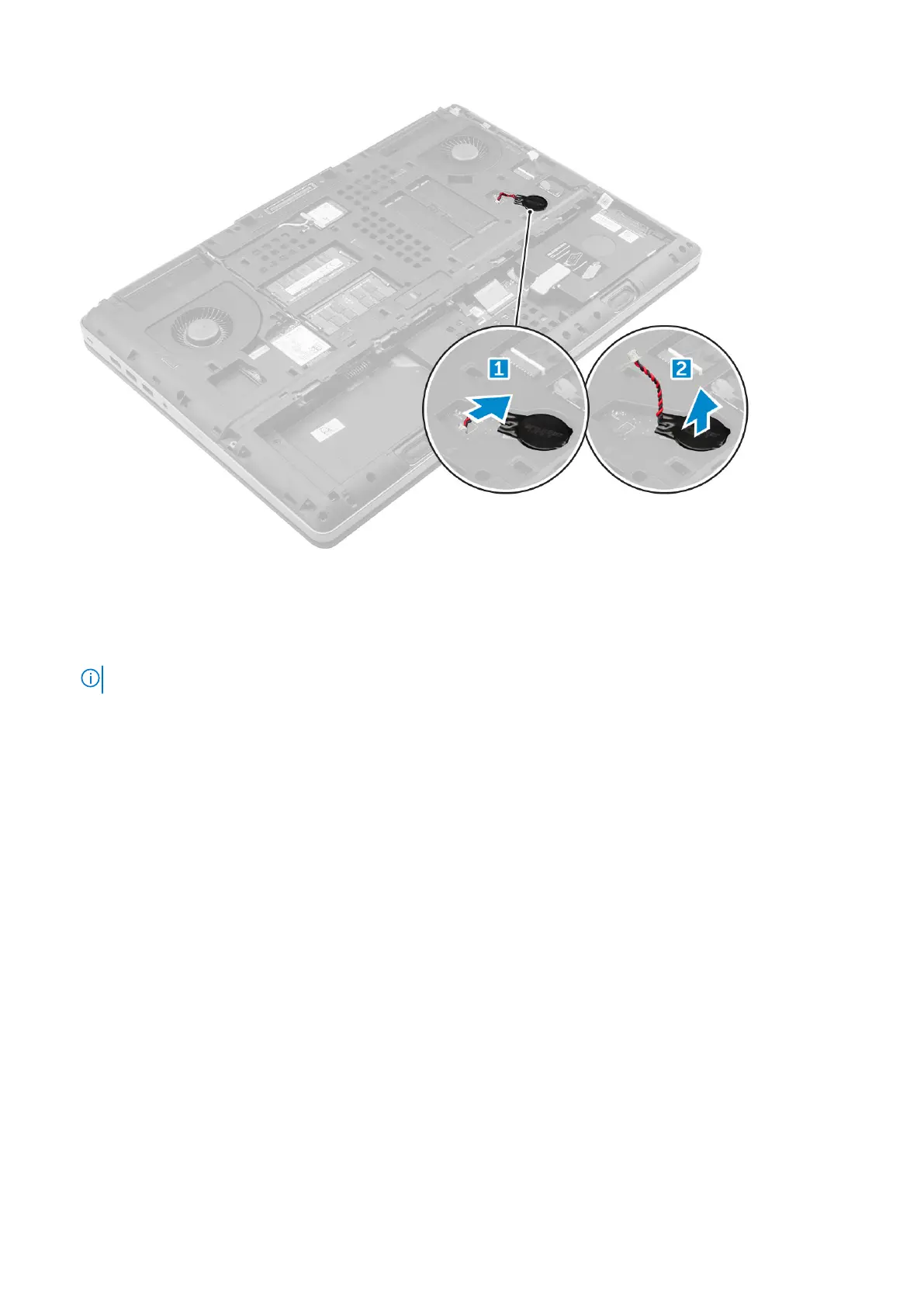

Installing the coin cell battery
1. Replace the coin cell battery in its slot on the computer.
2. Connect the coin cell battery cable to the comupter.
NOTE: Ensure that the coin cell battery cable does not protrude outside its compartment.
3. Install the:
a) base cover
b) battery
c) battery cover
4. Follow the procedure in After working inside your computer.
Power connector port
Removing the power connector port
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) battery cover
b) battery
c) base cover
3. To remove power connector port:
a) Disconnect the power connector cable from the computer [1].
b) Remove the M2.5x5.0 screw to remove the bracket from the computer [2].
c) Remove the bracket from the computer [3].
d) Lift the power connector port from the computer [4].
24
Disassembly and reassembly
