Display hinges
Removing the display hinge
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) battery cover
b) battery
c) base cover
d) hard drive
e) keyboard
f) palmrest
g) display assembly
h) display bezel
i) display panel

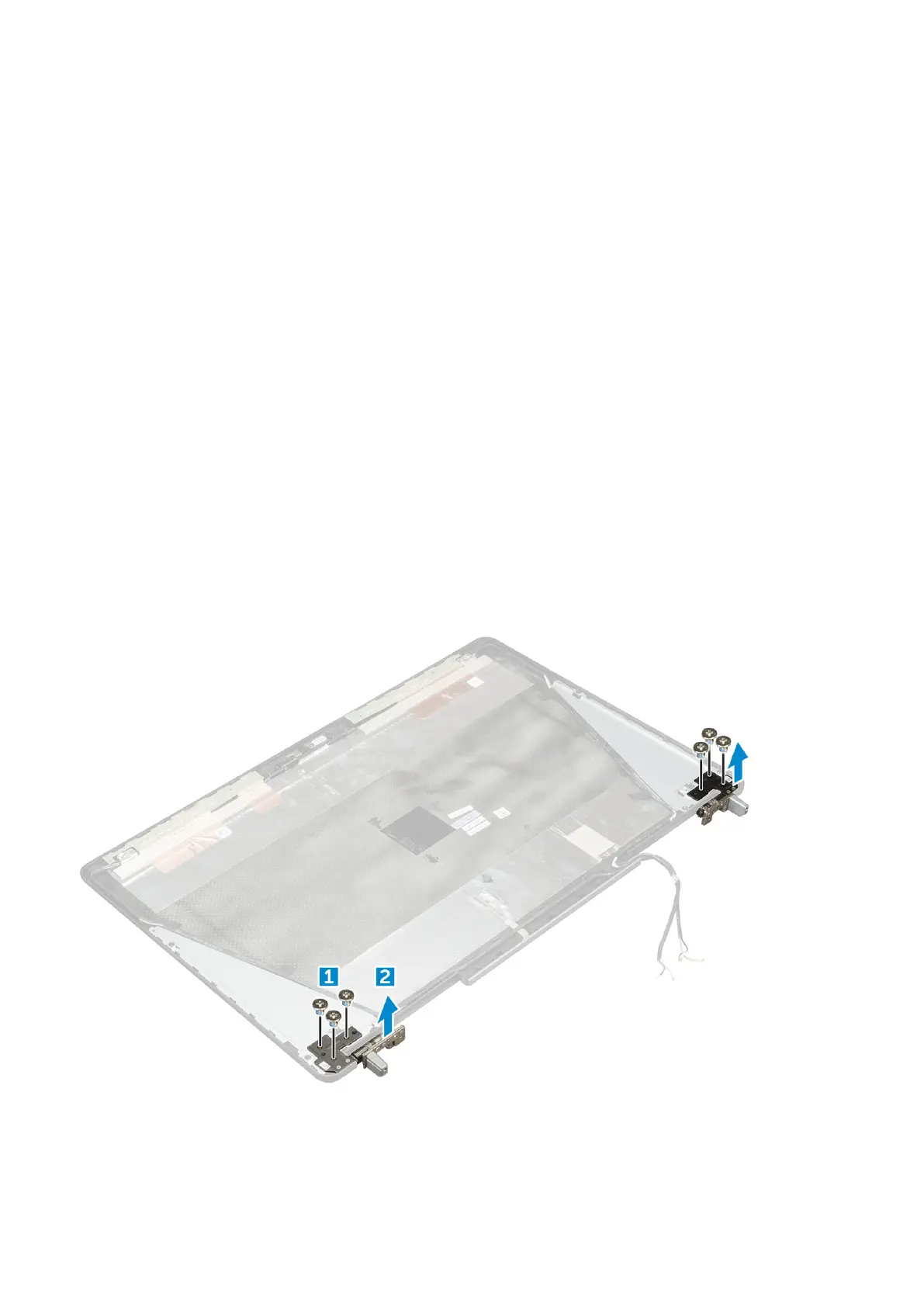

3. To remove display hinge:
a) Remove the M2.5x4.0 screws that secure display hinges [1].
b) Remove the display hinges from the display cover [2].
Installing the display hinge
1. Place the display hinge in its slot on the display cover.
