Dell Precision 7720 - eDP Cable

f) display bezel
g) display assembly
h) palmrest
i) keyboard
j) hard drive
k) base cover
l) battery
m) battery cover
4. Follow the procedure in After working inside your computer.
eDP cable
Removing the eDP cable
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) battery cover
b) battery
c) base cover
d) hard drive
e) keyboard
f) palmrest
g) display assembly
h) display bezel
i) display panel

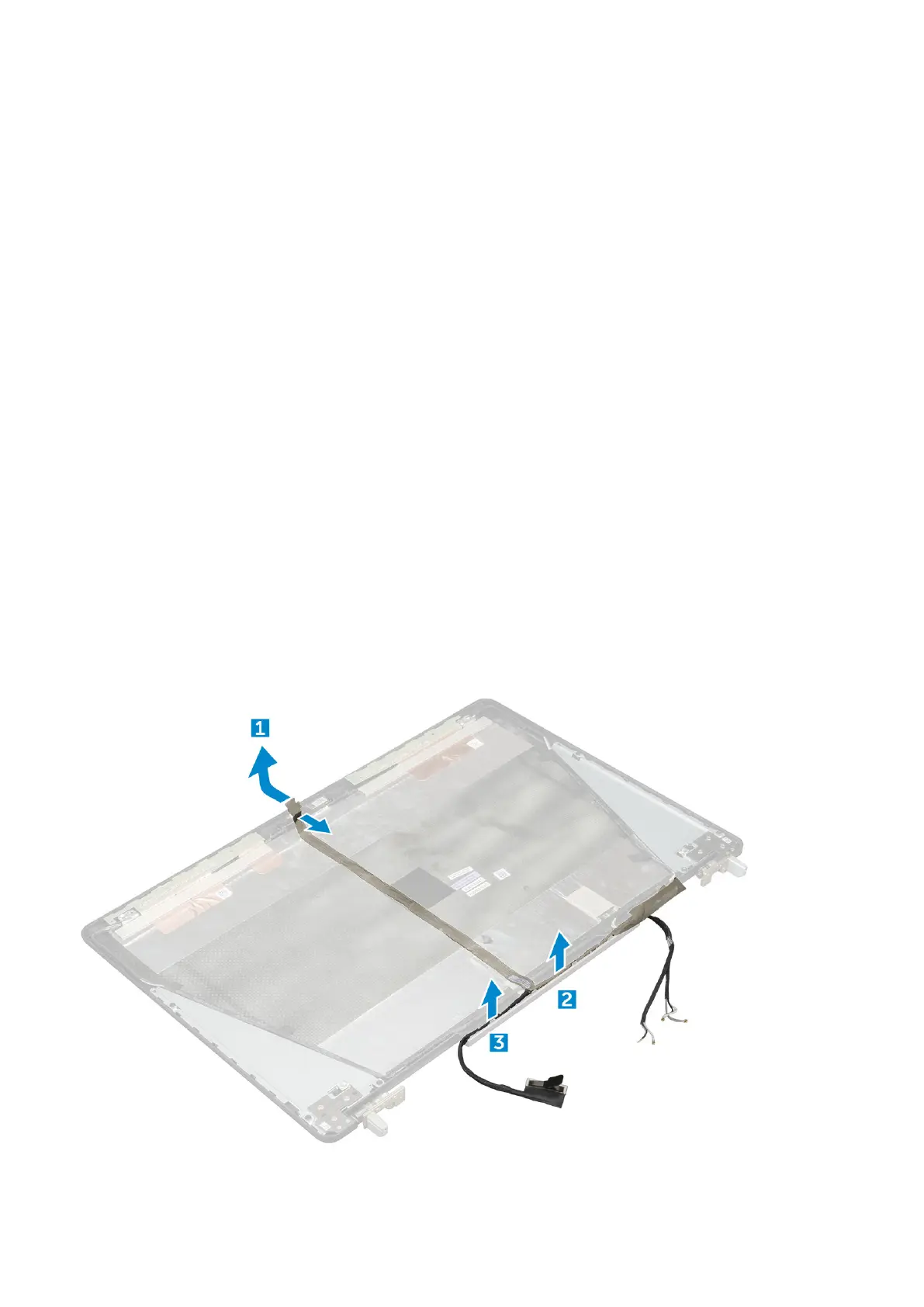

3. To remove eDP cable:
a) Peel the eDP cable [1].
b) Unroute the eDP cable from the display cover [2, 3].
Disassembly and reassembly
51
