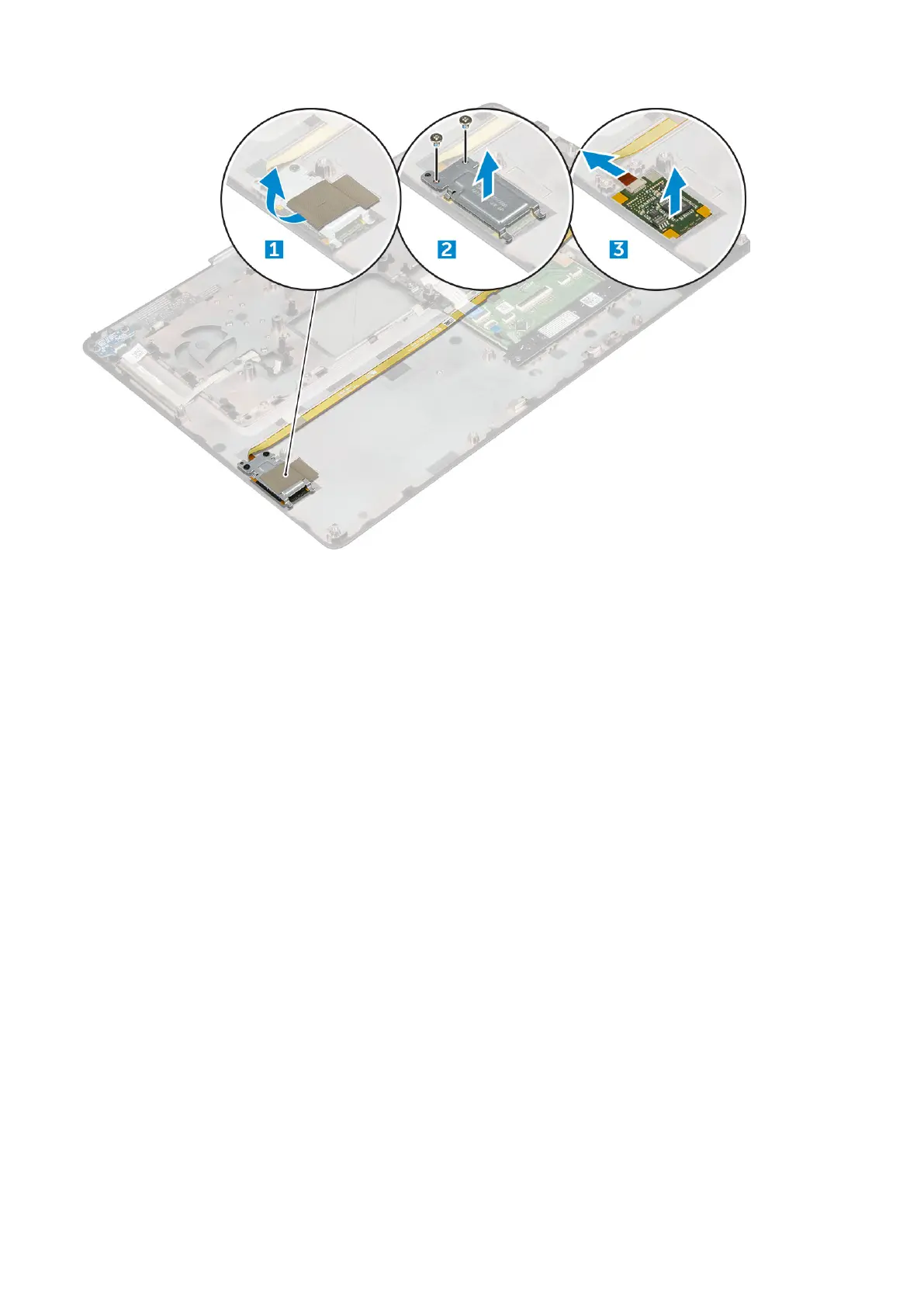

Installing the fingerprint reader
1. Align the fingerprint reader into its original position on the chassis.
2. Connect the finger print reader cable.
3. Place the metal bracket on the chassis.
4. Replace the M2.0X3 screws to secure the fingerprint reader to the chassis.
5. Affix the adhesive tape to secure the fingerprint reader.
6. Install the:
a) palmrest
b) power connector port
c) graphic card
d) M.2 SSD card
e) WWAN card
f) WLAN card
g) primary memory
h) secondary memory
i) HDD cable
j) keyboard
k) hard drive
l) base cover
m) battery
n) battery cover
o) SD card
7. Follow the procedure in After working inside your computer.
Power switch board
Removing the power switch board
