Dell Vostro 5481 - Page 30

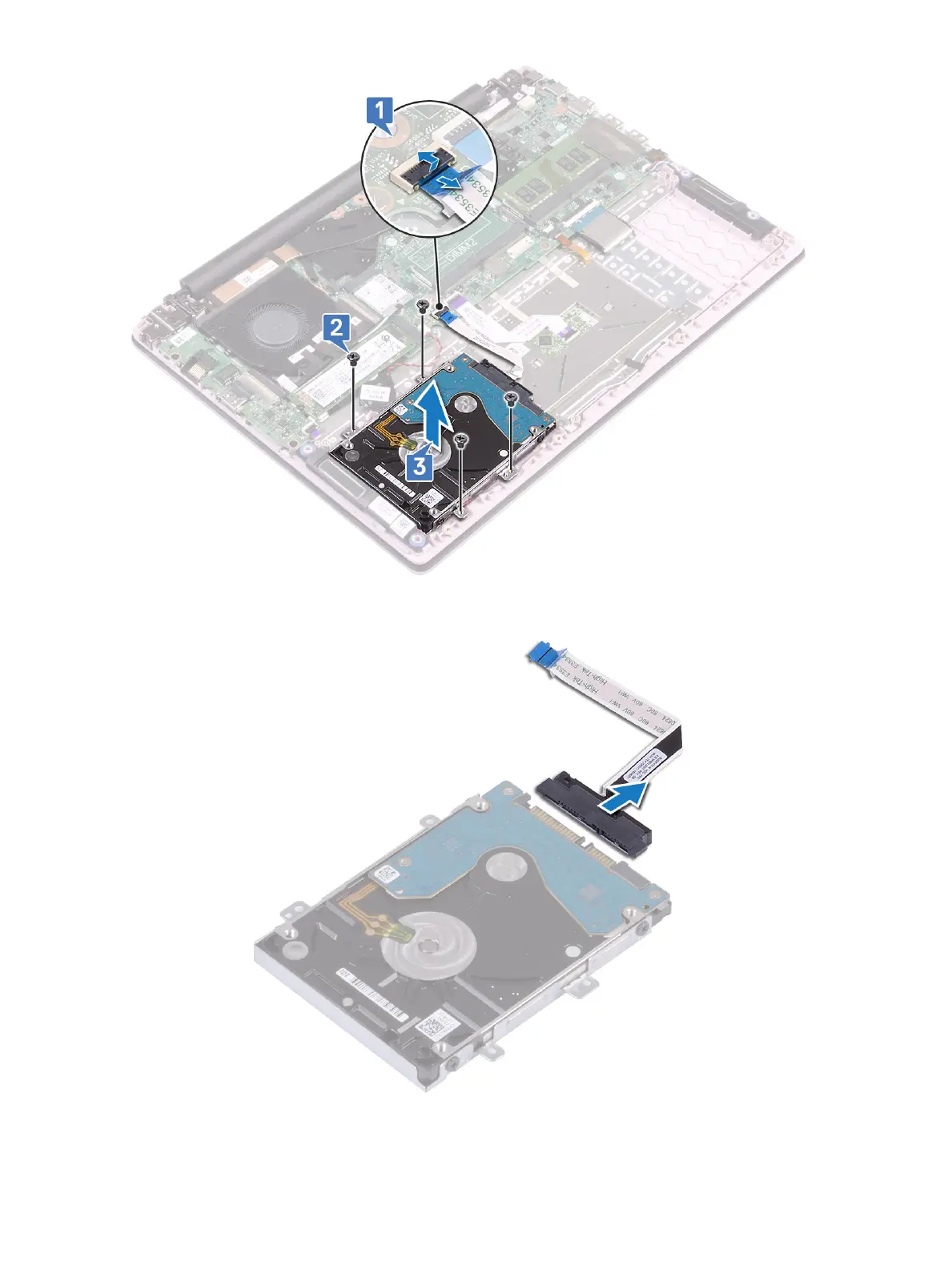

4 To remove the hard drive cable:
a Disconnect the interposer from the hard drive assembly.
5 To remove the hard drive bracket:
a Remove the 4 (M3x3) screws that secure the hard drive bracket to the hard drive [1].
30
Removing and installing components
