3 Install the:
a Input output board
b display assembly
c system fan
d battery
e base cover
4 Follow the procedure in After working inside your computer.
Power–adapter board
Removing the power-adapter port
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
3 To remove the power-adapter port:

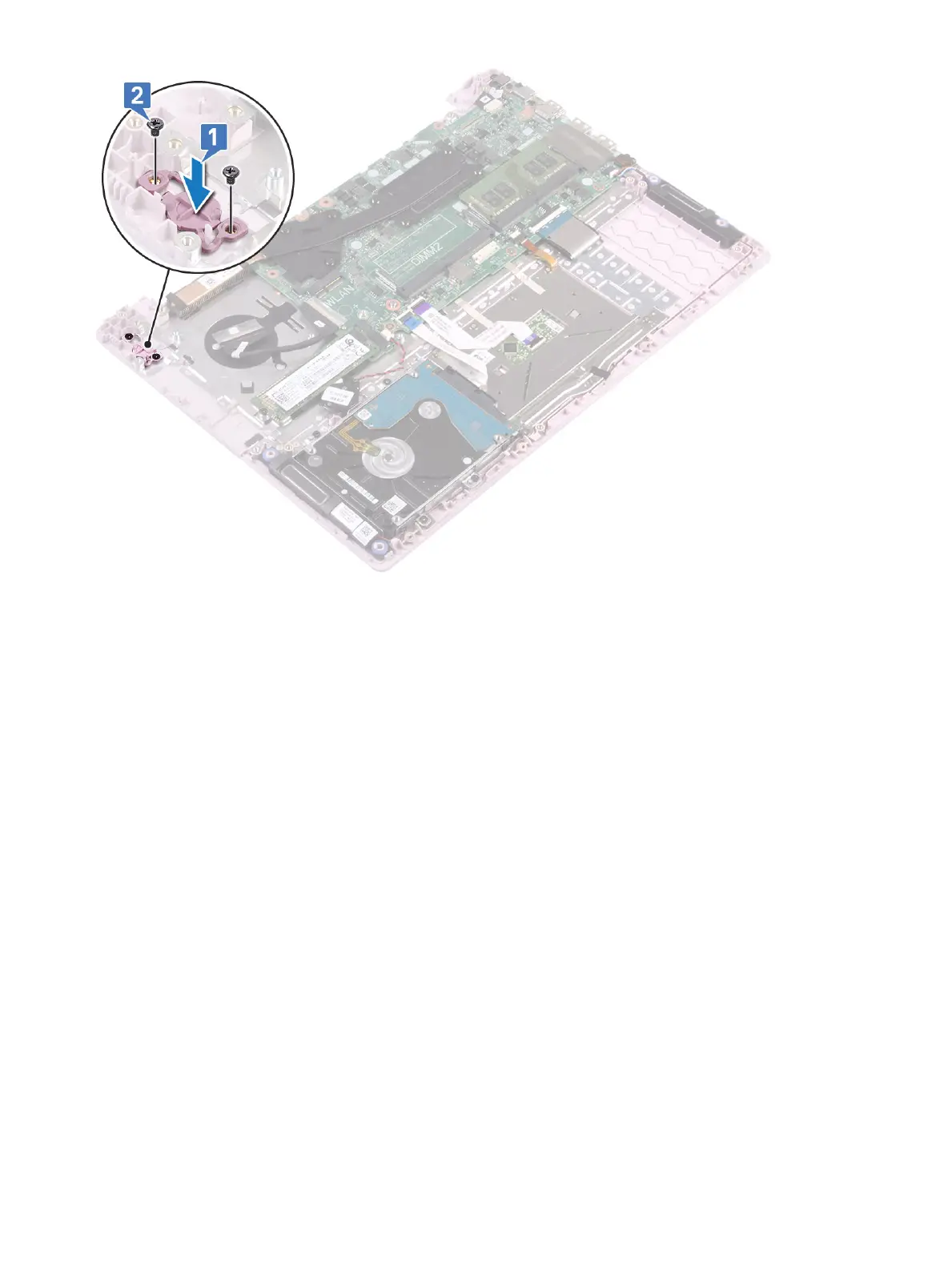

a Disconnect the power-adapter cable from the connector on the system board [1].
b Remove the single (M2x3) screw that secures the power-adapter port to the palmrest and keyboard assembly [2].
c Lift the power-adapter port away from the system [3].
