Dell Vostro 5481 - Installing the Power-Adapter Port

Installing the power-adapter port

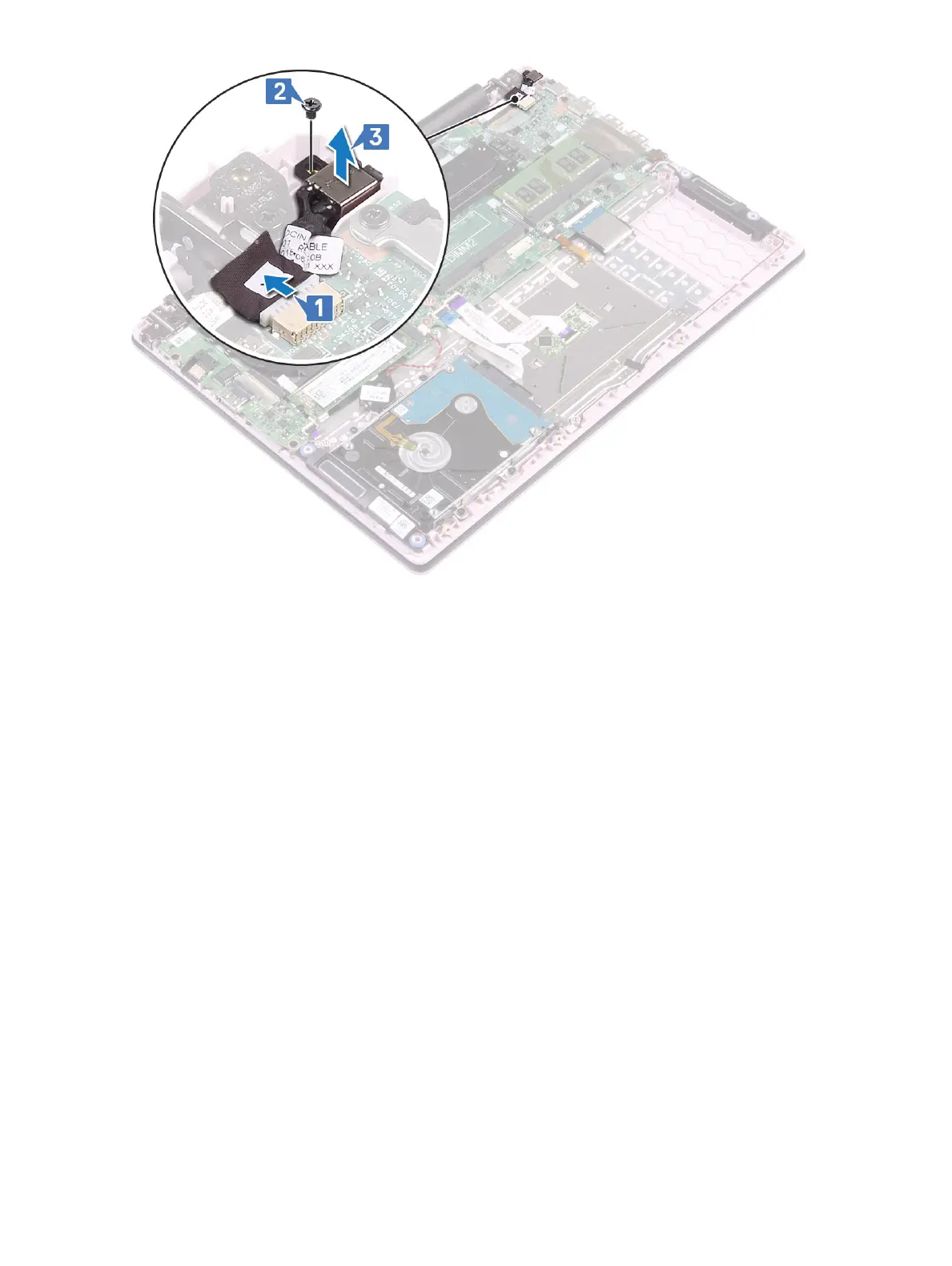

1 Align and place the power-adapter port to the slot on the palmrest and keyboard assembly [1].
2 Replace the single (M2x3) screw to secure the power-adapter port to the palmrest and keyboard assembly [2].
3 Connect the power-adapter cable to the connector on the system board [3].
