7 Install the:
a battery
b base cover
8 Follow the procedure in After working inside your computer.
Solid-state drive
Removing the solid-state drive
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
3 To remove the M.2 2280 SSD module:

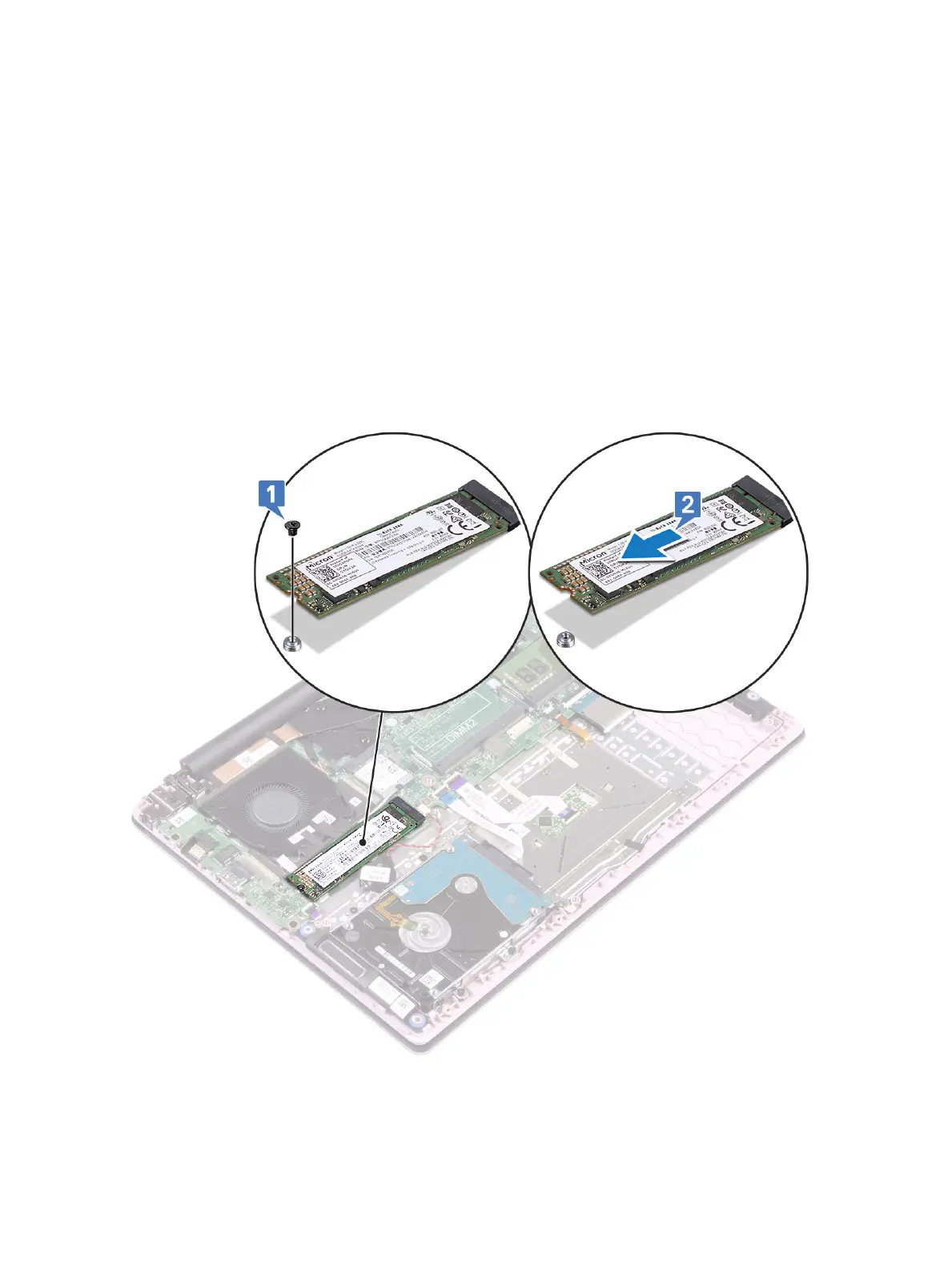

a Remove the single (M2x3) screw that secures the SSD module to the palmrest and keyboard assembly [1].
b Slide and remove the SSD module from the connector on the system board [2].
4 To remove the M.2 2230 SSD module:
a Remove the single (M2x3) screw that secures the SSD module to the palmrest and keyboard assembly [1].
b Slide and remove the SSD module from the connector on the system board [2].
Removing and installing components
33
