4 Install the:
a Input output board
b display assembly
c system fan
d battery
e base cover
5 Follow the procedure in After working inside your computer.
Power button
Removing the power button
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a base cover
b battery
c system fan
d display assembly
e Input and output board

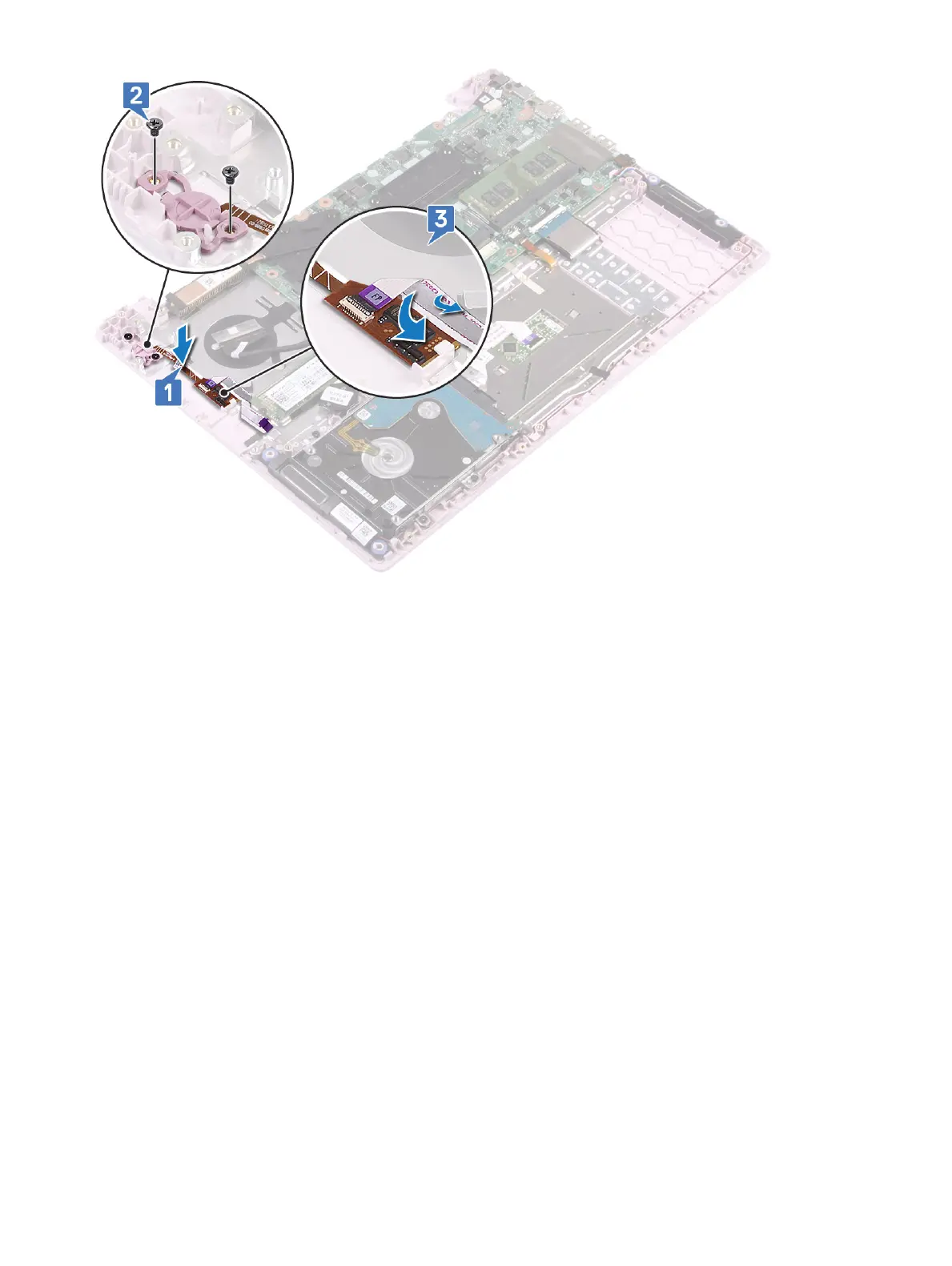

3 To remove the power button:
a Remove the two (M2x3) screws that secure the power button to the palmrest and keyboard assembly [1].
b Lift the power button away from the palmrest and keyboard assembly. [3].
Removing and installing components
55
