Dell Vostro 5481 - Installing the Speaker

Installing the speaker

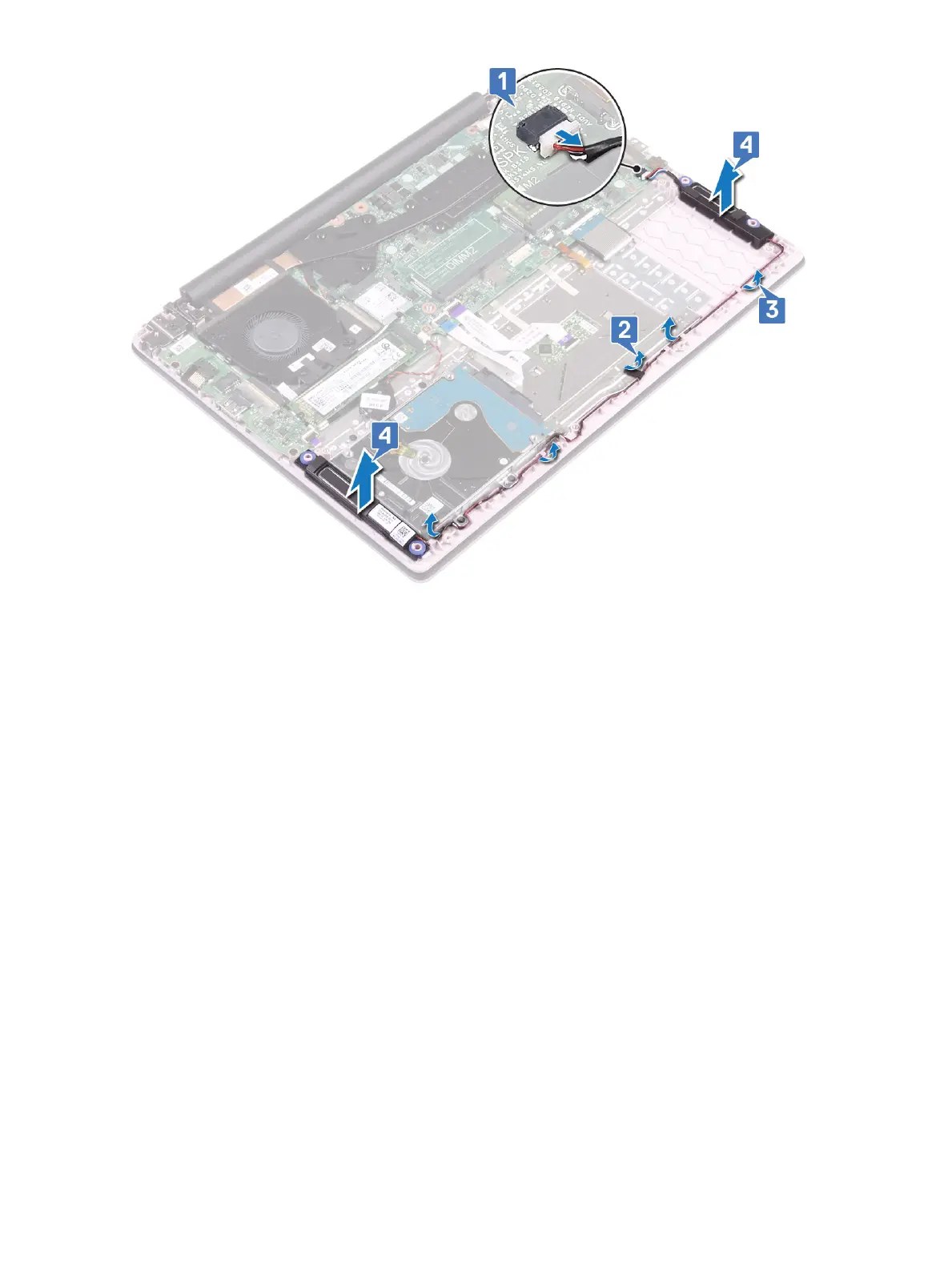

1 Align and place the speakers into the slot on the palmrest and keyboard assembly [1].
2 Route the speaker cable through the routing channel on the palmrest and keyboard assembly [2].
3 Ax the adhesive tape to secure the speaker cable to the touchpad bracket
4 Connect the speaker cable to the connector on the system board [4].
