Dell Vostro 5481 - Page 35

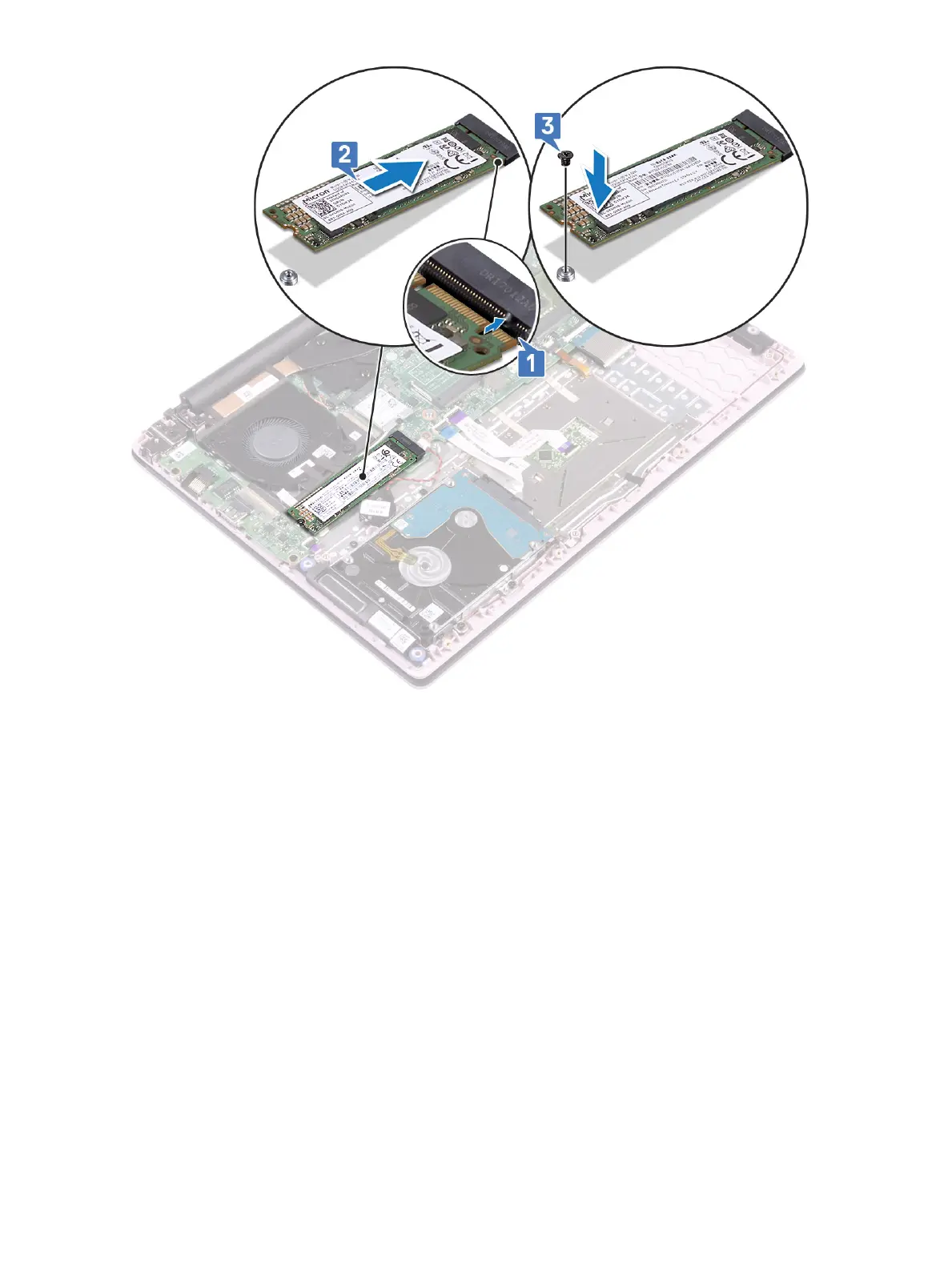

2 To install the M.2 2230 SSD module:
a Align and slide the SSD module to the connector on the system board [1].
b Replace the single (M2x3) screw to secure the SSD module to the palmrest and keyboard assembly [2].
Removing and installing components
35
