Dell Vostro 5481 - Page 60

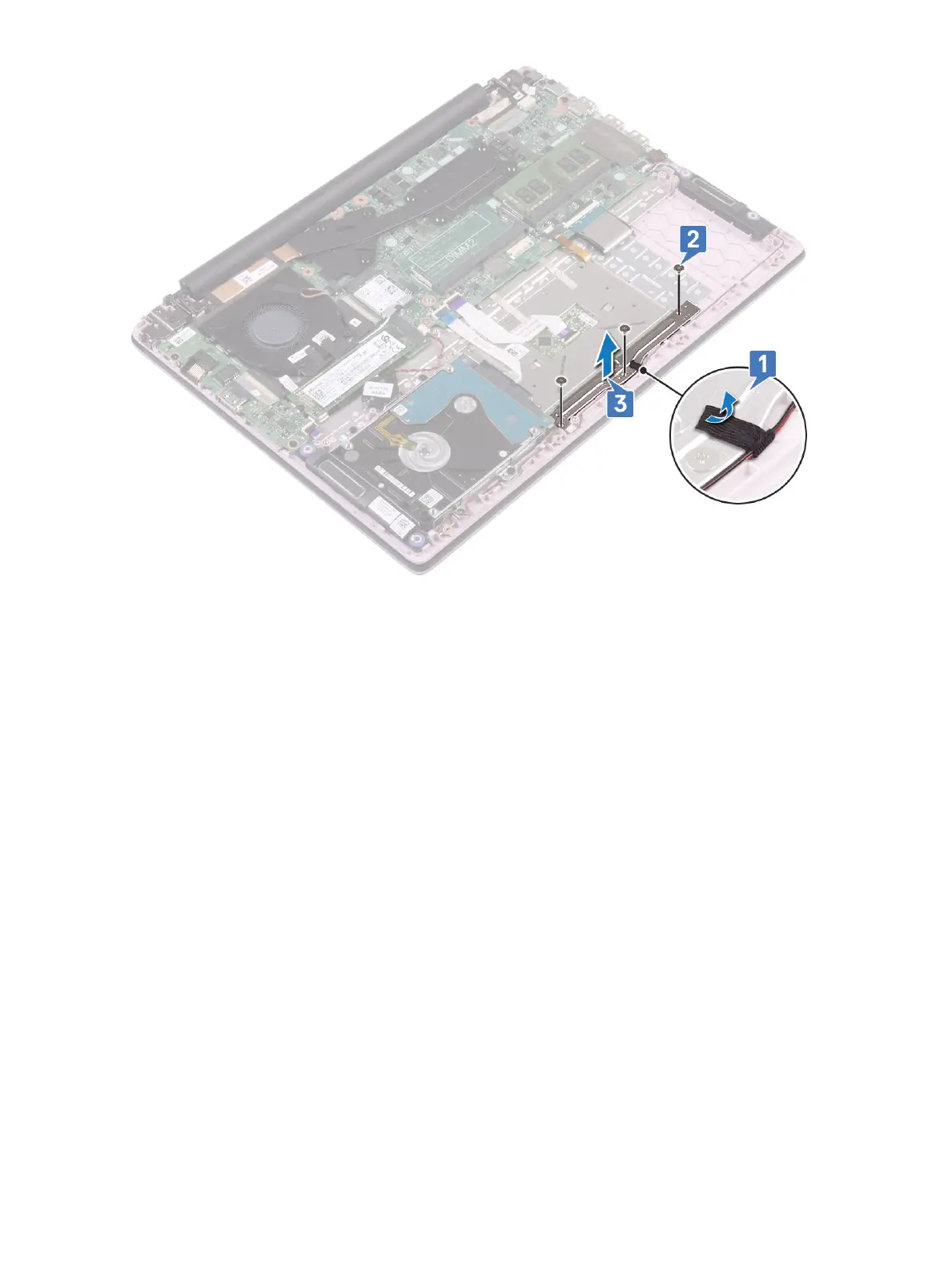

d Peel the adhesive tapes that secure the touchpad to the palmrest and keyboard assembly [1].
e Open the connector latch and disconnect the touchpad cable from the connector on the system board [2]
f Open the connector latch and disconnect the hard drive cable from the connector on the system board [3].
60
Removing and installing components
