VFD-MS300/MH300 EtherNet/IP Communication Card CMM-EIP01
CMM-EIP01 Operation Manual
14
NOTE
 The communication cards listed below must connect to ground when wiring. The ground
terminal is enclosed with communication card as shown in Fig. 7.
1. CMM-MOD01
2. CMM-PD01
3. CMM-DN01
4. CMM-EIP01
5. EMM-PG01L
6. EMM-PG01O
7. EMM-PG01R

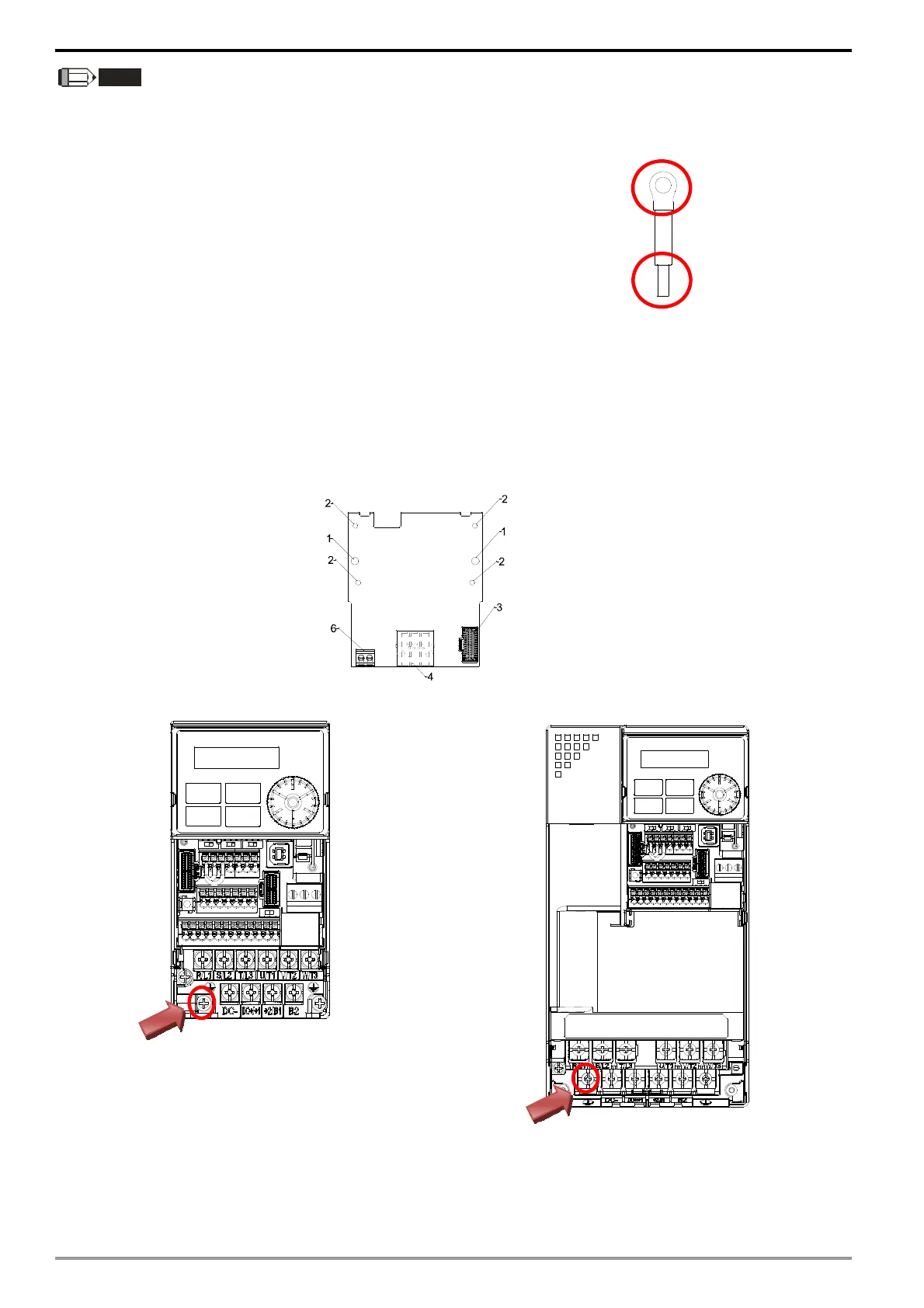

 Installation of the ground terminal:
B side of the ground terminal connects to the ground terminal block on communication card as
No.6 of CMM-EIP01 shown in Fig. 8, and see each section in Chapter 8 of MS300/MH300 User
Manual for ground terminal blocks of other option cards; A side of the ground terminal connects
to the PE on the drive as red circles shown in Fig. 9 ~ 11.
Frame A~C Frame D~E
Torque (±10%)
Frame A: 9 kg-cm [7.8 Ib-in.] [0.88 Nm]
Frame B: 15 kg-cm [13.0 Ib-in.] [1.47 Nm]
Frame C: 20 kg-cm [17.4 Ib-in.] [1.96 Nm]
Torque (±10%)
Frame D: 20 kg-cm [17.4 Ib-in.] [1.96 Nm]
Frame E: 25 kg-cm [21.7 Ib-in.] [2.45 Nm]
Fig. 8
Fig. 7
B.
Fig. 9
Fig. 10
A.
