Delta VFD-VL Series

Chapter 4 Parameters|VFD-VL
4-60
03-18
 Analog Output Gain 1
03-21
 Analog Output Gain 2
Control
mode
VF VFPG SVC FOCPG TQCPG FOCPM
Factory setting: 100.0
Settings 0 to 200.0%
 This parameter is set the corresponding voltage of the analog output 0.
03-19
 Analog Output Value in REV Direction 1
03-22
 Analog Output Value in REV Direction 2
Control
mode
VF VFPG SVC FOCPG TQCPG FOCPM
Factory setting: 0
Settings 0 Absolute value in REV direction
1 Output 0V in REV direction
2 Enable output voltage in REV direction

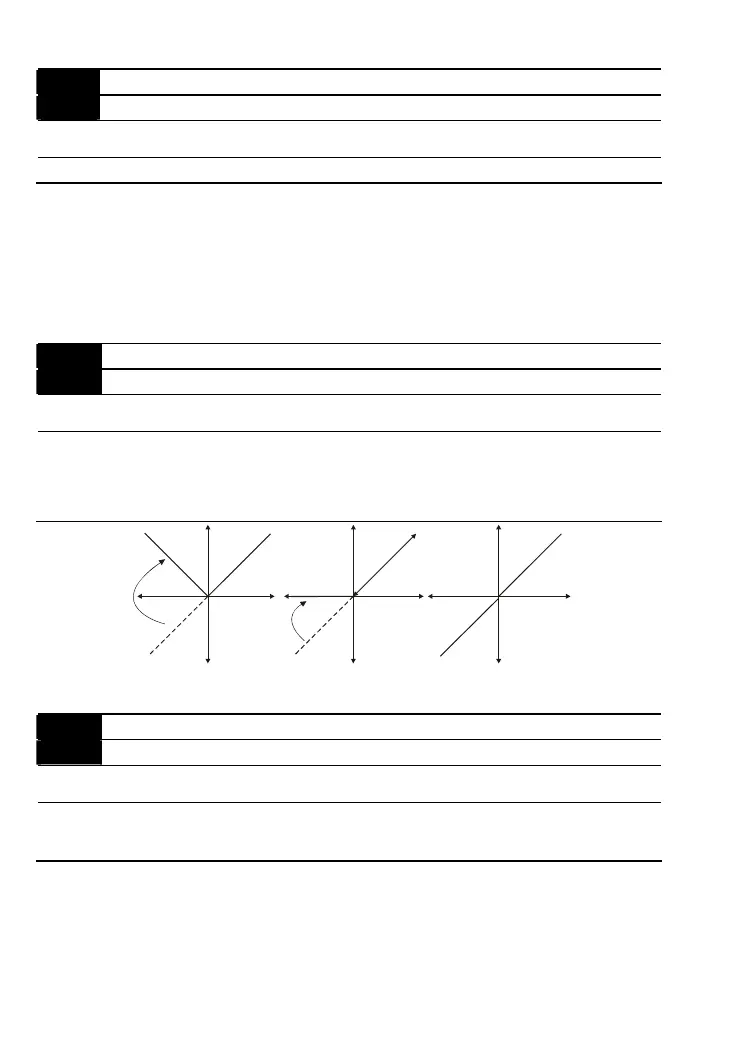

Selection for the analog output direction
10V
0V
03-19=0
10V
0V
03-19=1
10V
0V
03-19=2
frequency
frequency
frequency
03-23
Analog Input Type (AUI1)
03-24
Analog Input Type (AUI2)
Control
mode
VF VFPG SVC FOCPG TQCPG FOCPM
Factory setting: 0
Settings 0
Bipolar (±10V)
1 Unipolar (0-10V)
 When setting to 0 and Pr.03-00=1 or 2, AUI can decide the operation direction.
 When setting to 1 and Pr.03-00=1, the operation direction can be set by FWD/REV terminal.
 When setting to 1 and Pr.03-00=2, the operation direction can be set by setting 39 of Pr.02-01
to Pr.02-08.
