Delta VFD-VL Series User Manual

Chapter 1 Introduction|VFD-VL
1-13

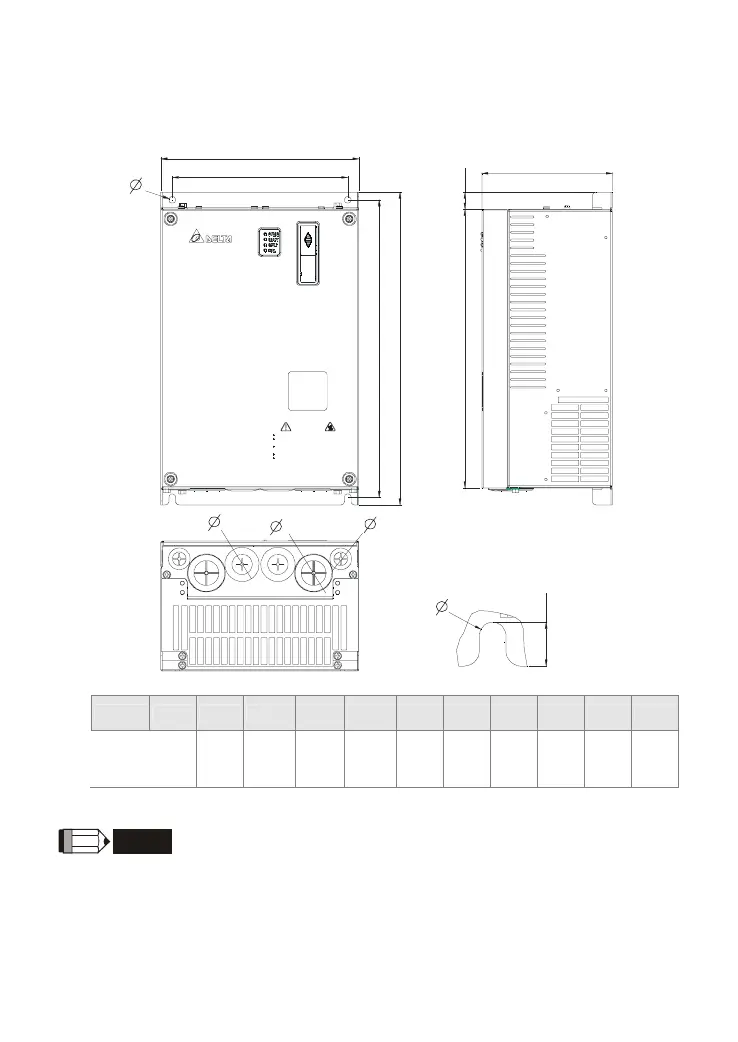

1.3 Dimensions
Frame C
Check to be sure that the voltage of the main AC power
supply sati sfies the rated voltage of the Inverter.
Do not connect AC power to output terminals U/T1,
V/T2 and W/T3.
Risk of electrical shock.Wait 10 minutes after removing
power befor e servicing.
Use proper grounding techniques.
Read the user manual before operation.
WARNING
W
W1
H
H2
H1
H3
D
1
3
2
Unit: mm [inch]
Frame W W1 H H1 H2 H3 D Ø Ø1 Ø2 Ø3
C
235
[9.25]
204
[8.03]
350
[13.78]
337
[13.27]
320
[12.60]
-
136
[5.35]
6.5
[0.26]
-
34
[1.34]
22
[0.87]
NOTE
Frame C:
VFD055VL23A/43A, VFD075VL23A/43A, VFD110VL23A/43A
