Appendix D Suggestions and Error Corrections for Standard AC motor Drive|VFD-VL
D-11
D.6 Wiring and Installation Problem

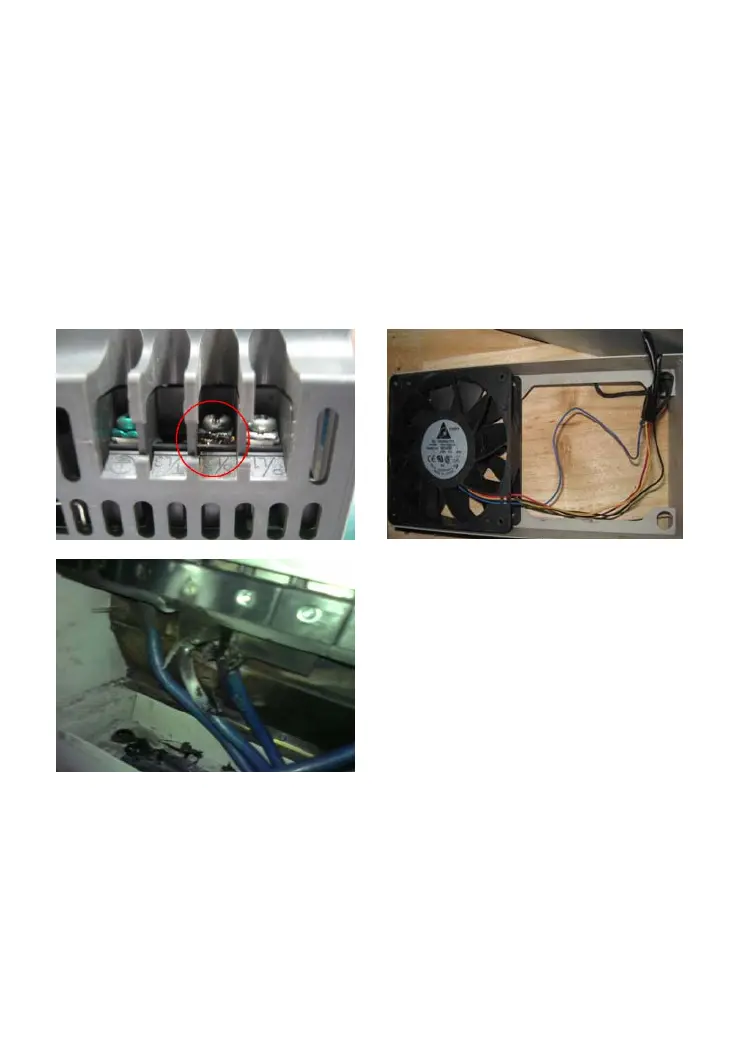

When wiring the drive, the most common problem is wrong wire installation or poor wiring. Please be
aware of the possible damages that poor wiring may cause to your drives:
1. Screws are not fully fastened. Occurrence of sparks as impedance increases.
2. If a customer has opened the drive and modified the internal circuit board, the internal
components may have been damaged.
Solutions: Ensure all screws are fastened when installing the AC motor drive. If the AC motor drive
functions abnormally, send it back to the repair station. DO NOT try to reassemble the internal
components or wire.
