Delta VFD-VL Series User Manual

Appendix B Accessories|VFD-VL
B-31

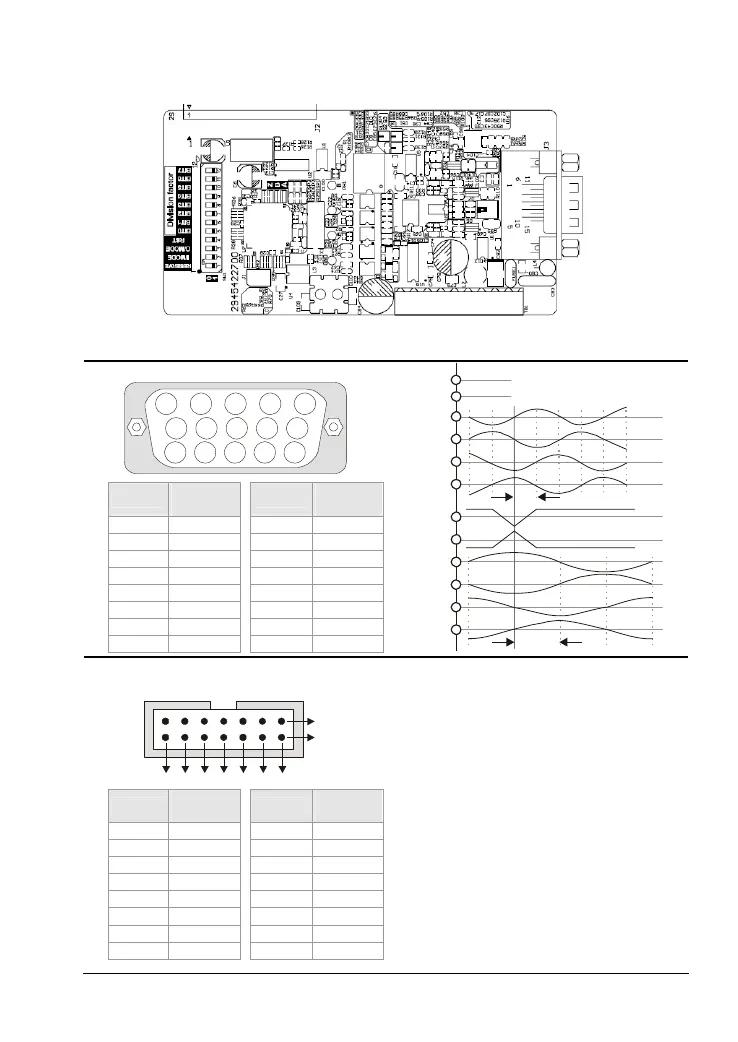

B.8.3 EMVL-PGH01 (only for Heidenhain ERN1387)
1. Sinusoidal Encoder Function
VFD-VL series
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
Pin NO
Terminal
Name
Pin NO
Terminal
Name
1 B- 9 +5V
2 NC 10 SIN
3 Z+ 11 SIN’
4 Z- 12 COS
5 A+ 13 COS’
6 A- 14 NC
7 0V 15 NC
8 B+
A+
A-
Z+
Z-
B+
B-
SIN
SIN'
COS
COS'
+5V
0V
Vdc
GND
90 el.
0
90 mech.
0
Heidenhain ERN1387
123456
B
A
7
Pin NO
Terminal
Name
Pin NO
Terminal
Name
5a B- 1b UP
NC NC 1a C-
4b R+ 7b C+
4a R- 2b D+
6a A+ 6a D-
2a A- - -
5b 0V - -
3b B+
