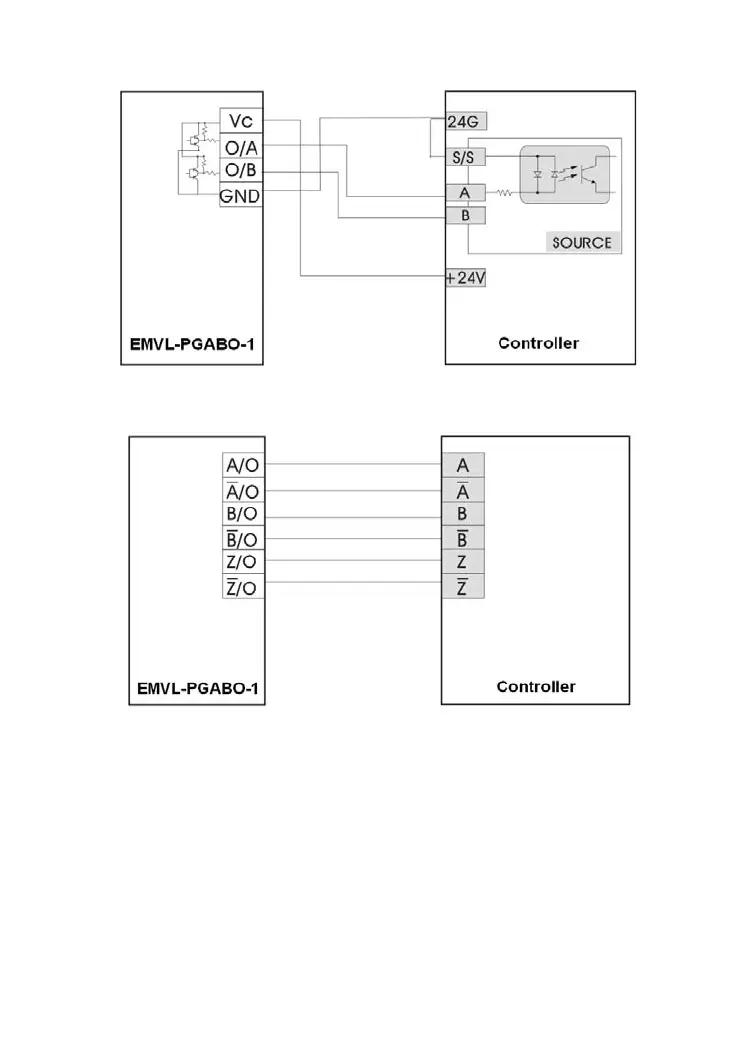

Appendix B Accessories|VFD-VL
B-30
2. Common voltage output terminal S/S
3. If the encoder type is line driver, when switch SW2 is set to +12V or +24V, the PG card
will only output 5V.
