Delta VFD-VL Series User Manual

Appendix B Accessories|VFD-VL
B-35

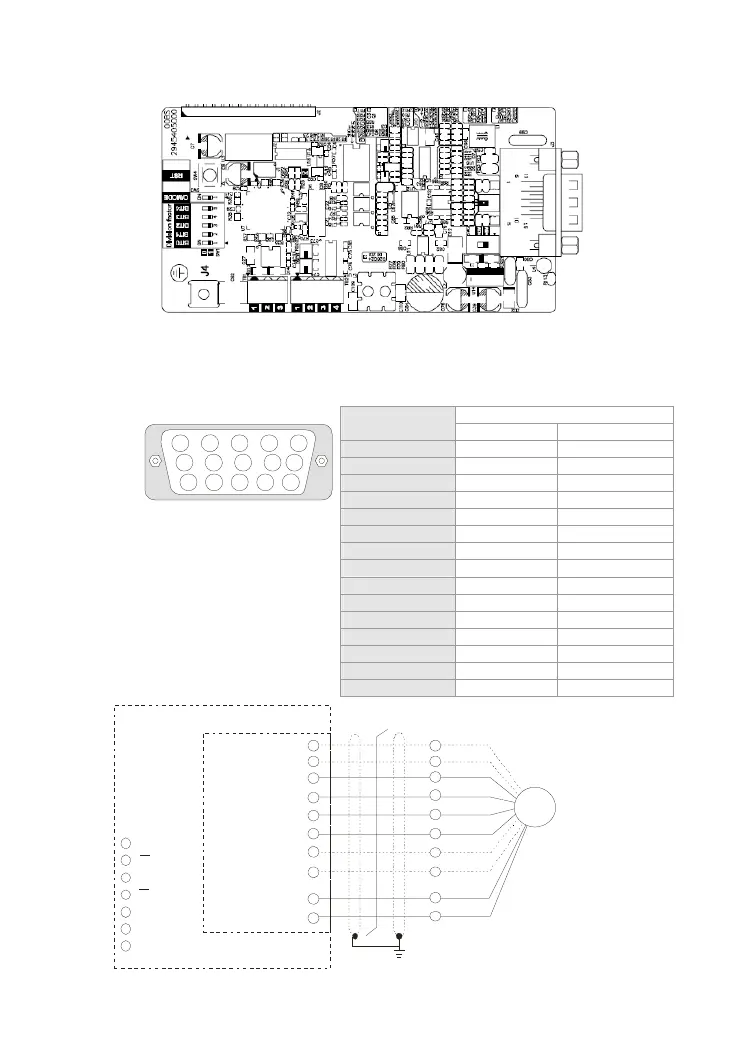

B.8.4 EMVL-PGS01
Applicable encoders for EMVL-PGS01:
 EnDat2.1: EQN425, EQN1325, ECN113, ECN413, ECN1113, ECN1313
 HIPERFACE: SRS50/60
1. Pin description
Corresponding terminal
VFD-VL Series
Pin No.
EnDat HIPERFACE®
1 B- REFSIN
2 0V 0V
3 0V 0V
4 0V 0V
5 A+ +COS
6 A- REFCOS
7 0V 0V
8 B+ +SIN
9 VP VP
10 Data+ Data+
11 Data- Data-
12 CLOCK+ -
13 CLOCK- -
14 VP VP
VFD-VL Series
5
4
3
2
1
10 9 8 7
6
15
14
13 12
11
15 0V 0V
OB
A/O
A/O
B/O
B/O
OA
VP
0V
A+ (+COS)
B+ (+SIN)
Data+
EMVL-PGS01
CLOCK+
CLOCK-
A- (REFCOS)
B- (REFSIN)
PG
Data-
GND
Encoder
